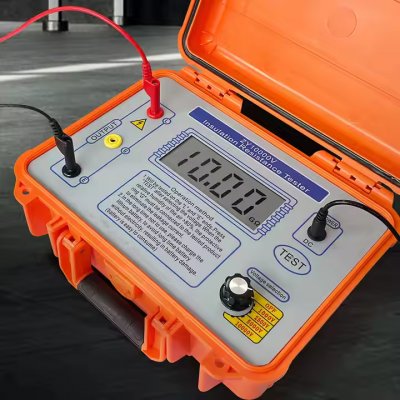

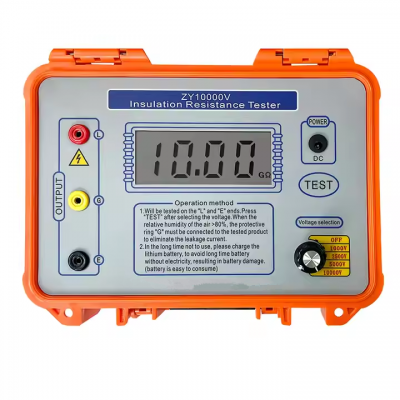

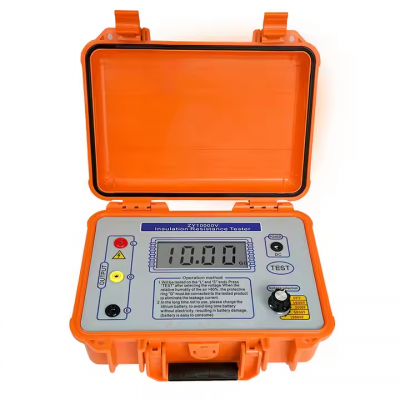

testermeter-DY10KV Insulation Resistance Tester Multifunction High Voltage Digital Insulation Resistance Testce Multitester Metre

Main Feature :
Serial No. : monica0619

Specification

Contact Us For Quotation

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

testermeter-DY10KV Insulation Resistance Tester Multifunction High Voltage Digital Insulation Resistance Testce Multitester Metre

Product descriptions from the supplier

product characteristics

●It is suitable for insulation test in the maintenance, test and verification of all kinds of electrical equipment.

●31/2LCD Large screen digital display with high resolution and convenient reading.

●There are four kinds of rated insulation test voltage, strong load capacity.

●Easy to operate, easy to carry, accurate, reliable and stable.

●Low power consumption, 16V/1.8AH lithium battery power supply, long service life. (or powered by alternating current AC220V)

●The utility model has the advantages of shockproof, dustproof and dampproof structure, and is suitable for bad working conditions.

product parameters

Model	ZY10000V
Rated voltage （V）	1000V,2500V,5000V,10000V
Working voltage （V）	Rated voltage 220V±10% Load ≥20MΩ
Measuring range And Error	(1~1999)MΩ±(5%RDG+2d) (2.00~199.9)GΩ ±(10%RDG+2d)
Output short-circuit current	≥1mA
Insulation resistance	≥50MΩ (1000V)
Pressure	AC 3kV 50Hz 1min
Power Supply	DC16V lithium battery
Consume power	≤150mA

Lable: testermeter-DY10KV Insulation Resistance Tester
