WS5850 Impulse Winding Surge Tester test Three Phase Motor Stator Transformer Coil

  • Main Feature :
  • Serial No. : monica0598
Contact Us For QuotationEmail:  464560351@qq.comWhatsapp&Wechat:+8618620373879

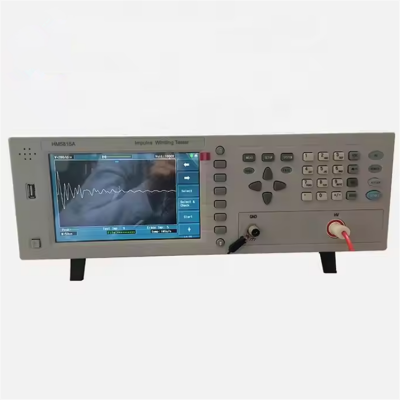

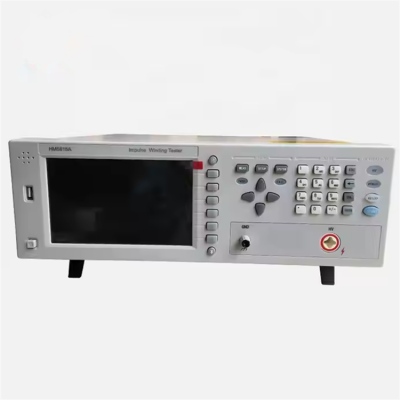

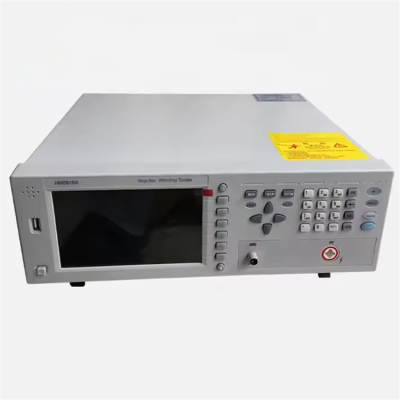

HM5815A Impulse Winding Surge Tester test Three Phase Motor Stator Transformer Coil

Introduction

Due to the influence of wire material, magnetic material, framework and manufacture technics, winding products such as transformers, motor windings may have defects of low insulation between winding layers, circles and leads.HM5815A series impulse winding tester, adopting high-speed sampling techniques, is a new test instrument for insulation performance of winding products.

HM5815 series compares the standard waveform stored in the non-volatile memory with the current tested waveform. HM5815 series provides the PASS or FAIL comparison result according to AREA SIZE, DIFFERENTIAL AREA, CORONA DISCHARGE or DIFFERENTIAL PHASE. With its strong functions, accurate comparison methods, easy operation and various interfaces,HM5815A can provide a perfect test solution for most winding products.

Product Paramenters

Specifications
HM5815-5
HM5815-10
Output for impulse voltage
100V~5000V
10V steps
5%±15V
500V~10000V
200V steps
5%±25V
Inductance test range
>10μH
>20μH
Impulse energy
Max 250milli-Joules
Max 500 milli-Joules
Contents in waveform display area on LCD
800×480 dot-matrix LCD
255×650 dot-matrix
Setup parameters, standard wave and test wave, comparison result, file information, etc.
Sample wave
Sampling rate: 200MSPS(only A series) 100MSPS, 50MSPS, 20MSPS, 10MSPS, 5MSPS, 2MSPS, 1MSPS, 500kMSPS, 200kMSPS,100kMSPS
Resolution: 8bits
Sampling point: 6500bytes
Standard wave sample
Sequential cycle, single cycle, one sample (up to 32 times of sample averaging)
Input impedance
5MΩ
Test speed
6 times/sec
Averaging rate
Number of test impulse
1 to 32 averaging rate programmable
Number of demagnetizing impulse
0 to 16 averaging rate programmable
Measurement function
Voltage, time and frequency
Trigger mode
Internal, Manual (Foot), External and Bus
Comparison method
AreaSize Comparison
DiffZone Comparison
Corona Comparison
PhaseDiff Comparison
Area size measurement accuracy
±1%
Area difference measurement accuracy
±1%
Comparison output
PASS/FAIL display Beeper alarm
Beep mode
ON (adjust for high and low tone), OFF
Memory
Built-in memory: 100 files
USB disk memory

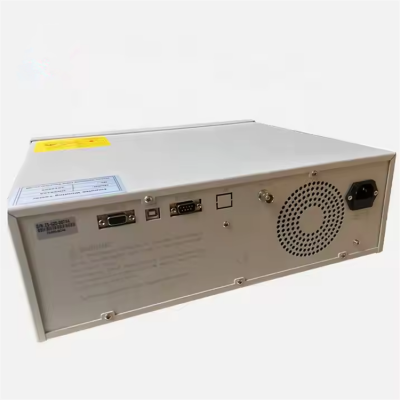

Interface
HANDLER (START, STOP, PASS, NG, BUSY, EOC, etc.)
RS232C USB Device USB Host LAN
