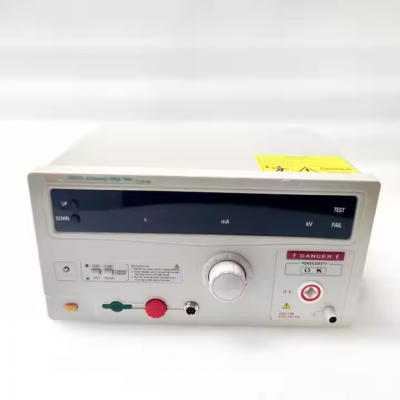

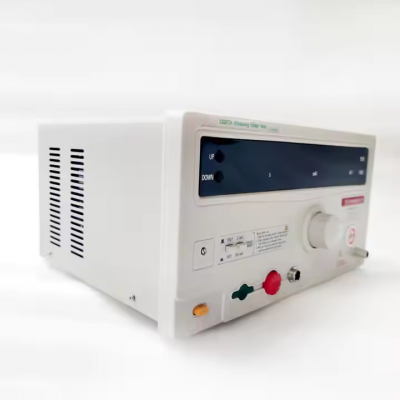

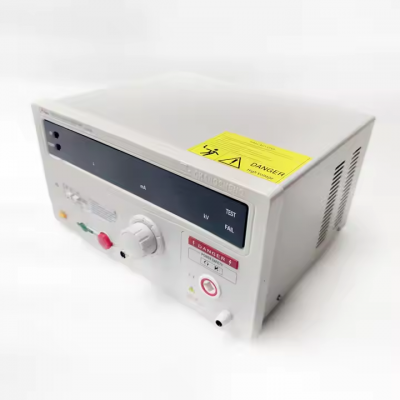

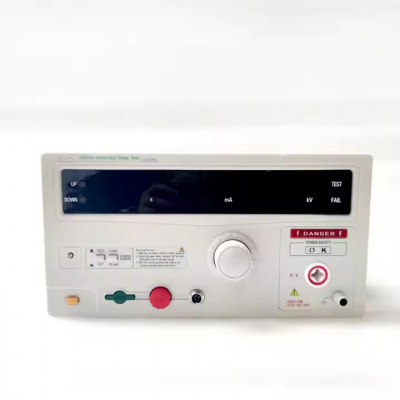

Testermeter-CS2670A High Voltage Withstanding Voltage Tester
Brief Introduction
The withstand voltage tester is an instrument used to measure the withstanding voltage. It can visually, accurately, quickly, and reliably test the breakdown voltage, leakage current, and other electrical safety performance indices of various tested objects. It can also serve as a DC (or AC) high-voltage power supply to test the performance of components and complete instruments. The CS267X series withstand voltage tester is designed according to international and domestic safety standards such as IEC, BS, UL, JIS, etc. It has a withstanding voltage range of 3kV to 20kV and a leakage current range of 0 to 200mA, with special requirements available upon request. This instrument is suitable for testing various items, including white goods, power supplies, cables, transformers, connecting terminals, high-voltage Bakelite electrical appliances, switches, outlets, plugs, motors, dishwashers, washing machines, centrifugal dryers, microwave ovens, electromagnetic machines, electronic ovens, electric firepots, electric rice cookers, TV sets, electric fans, medical devices, chemical engineering, electronic instruments, meters, complete machines, etc. It provides security against withstanding voltage for high-voltage electrical systems and is used to test leakage current. It is also an indispensable device for withstand voltage experiments in scientific research laboratories and technical supervision departments. The CS267X series withstand voltage testers are based on the introduction and integration of advanced worldwide technologies, combined with extensive feedback from Chinese users to enhance and improve the design. The CS2670A, CS2670A-1, CS2670AX, CS2670Y, CS2671AX, CS2671BX, CS2671TX, CS2672BX, CS2672CX, CS2672DX, CS2673X, CS2674AX, and other models are the latest fully digital withstand voltage testers developed by our factory. Both the testing voltage and the leakage current dwell time are displayed digitally, a feature that is the first of its kind in China. Based on previous models, performance has been further improved. The leakage current can be continuously and optionally set from 0.1mA to 100mA, depending on the security standards and user requirements. Regarding time testing, the issue of the original model's indication discrepancy has been improved. With the new digital countdown display, the precision of dwell time is increased to within ±1%, and the testing range is extended to 99 seconds. The function set is now richer and more practical, allowing the actual leakage current values of the tested object to be displayed. This helps in comparing the withstand voltage grades of different lots or products from different manufacturers, ensuring that the security performance of your products is guaranteed. At the same time, the digital display of leakage current can also be used to simultaneously measure the reverse voltage and reverse leakage current of high-voltage silicon rectifier stacks, as well as the reverse voltage and leakage current of high-voltage dynatron tubes. This makes it a leading domestic withstand voltage tester in terms of both technical performance and reliability. |
