TesterMeter-NTX Series tension meters

2023-07-06 17:04:20

TesterMeter measure line tensiono fibers wire fiter optics able and oter mitrds. With compuercommuncation functio ll hatacan be stored and dlsolajed onthe computer in waveform mode.The NT series has 10 kinds of tension ranging from 1.0-200.0cN to 10.0-1000daN.The width of the measuring head varies with dfferent ranges.

Main Feature :
Serial No. :

Specification

Email：464560351@qq.com

Whatsapp: +8618620373879

Introduction

General-purpose tension meter measure line tension of fiber, wie f. e optits,cable and oter materias lith computer ommunicaton uncio ll hatacan be storedan obsoayed onthe computer in waveform mode.

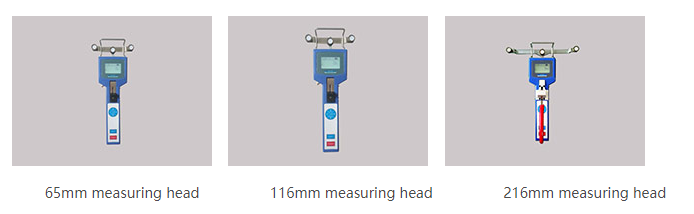

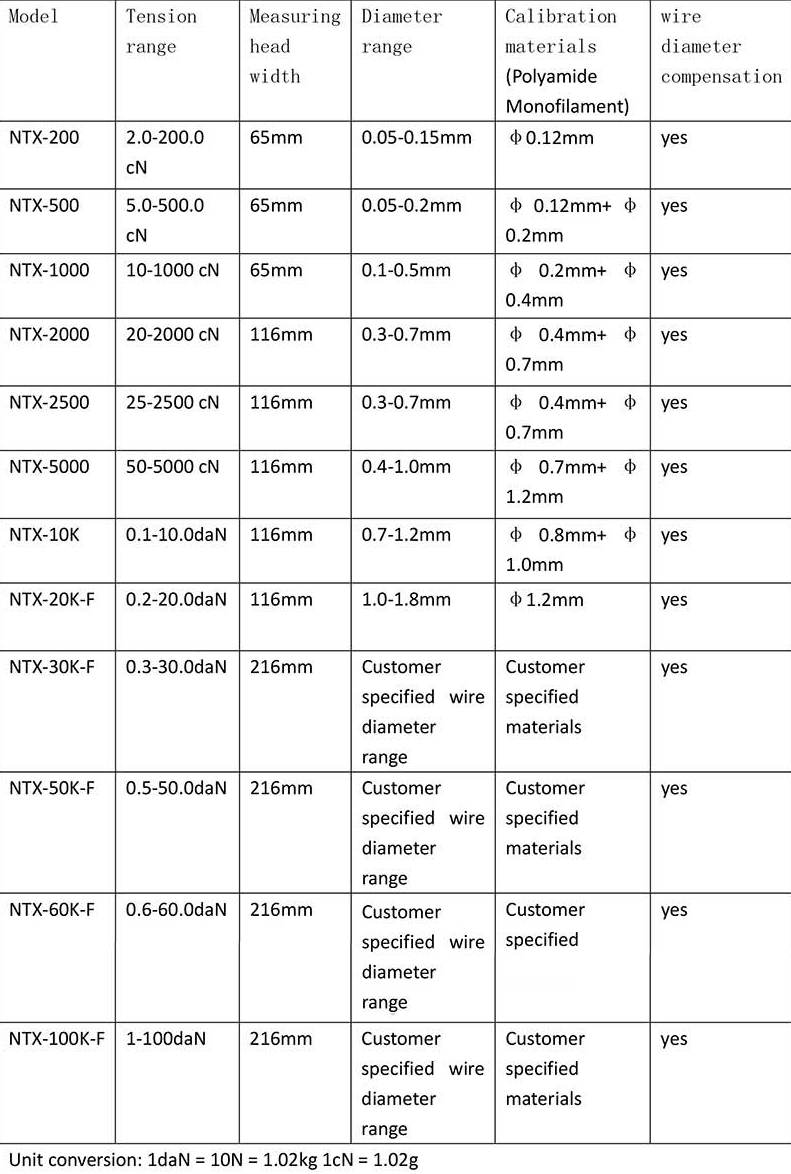

The NT series has 10 kinds of tension ranging from 1.0-20.0cN to 10.0-100.0daN.The width of the measuring head varies with different ranges.

图片关键词

Features

The patented technology automatclly resets the meter to zero , which improves the measurement accuracy and facilitates measurement.
Equipped with a wire diameter compensator, which compensates errors caused by different wire diameters and improves measurement accuracy.
Equipped with lead frame and guide wheel movement structure, it is easy to capture the tested material.
V-groove aluminum measuring guide roller with ball bearing.
Rugged, non-slip aluminum case, resistant to electrical interference.
LIPO lithium-ion polymer battery (about 60 hours of continuous operation).
The tested matera l the guide rolea and thescreen are locted on the same plane. Durng the test the tet data the staus of the guide rolle and the tested material can be seen.
A maximum of 10 materials can be accurately calibrated.With the wire diameter compensator,the tested wire diameter range is large.
character menu setting interface, easy to operate.
According to different ranges and needs, the measurement value display unit can be selected g kg, c N, N, daN, lb
It can record the maximumn vateg minimum vale,peako value and average value in the measurement process, and can also store 10 independent measurement values.
Programmable setting of the maximum nd minimum value of the trend status bar, clearly detemine the range of tension change, and have the advantages of mechanical instrument trend display.
Provides fine adjustmert of display results, If there is a slight deviaton between the material measured on site and the standard calibration material, and accurate aus can be dislayedwithout recalibration.
Function settings can be protected by passwords to improve setting security.
Can communicate with computer wiredly (standard) or wirelessly (optional), store and analyze test data

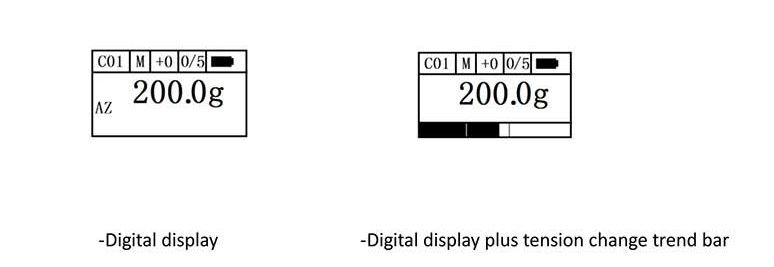

Betten tensiometer provides two display modes,taking into account the advantages of accurate elecronic tensiometer reading and mechanical tensiometer trend display.

Model TesterMeter-NTX

Specifications

Accuracy	(factory calibration material)1% full scale (FS), (other materials)3% FS.
Display update frequency	0.5 seconds
Optional units	gf, cN, N, kgf, daN,LB (switchable units are different for different ranges)
Adjustable range	The displayed value can be adjusted within ± 10 steps of 1% of full scale according to the site requirements
Line speed	1000m / min
Stored value	Maximum, minimum, maximum peak, minimum peak, average
Display	Dot-matrix LCD
Shell size	76× 46× 275mm
Power	Lithium-ion rechargeable battery, continuous working for about 60 hours
Operating temperature	10-45°C, 90% relative humidity or less

Applications

stranding machine, winding machine, wire cutting machine,carbon fiber winding equipment,optical fiber winding equipment optical cableProduction equipment, glass fiber winding equipment steel cord production equipment,tre production equipment wire rope production equipment.
