TesterMeter-NT Series General-purpose tension meter

2023-07-06 17:05:06

General-purpose tension meter measure line tension of fibers, wire, fiber optics, cable and other materials. The Xtester-NT seres has 10 kinds of tension ranging from 1.0-200.0cN to 10.0-100.0daN.The width of the measuring head varies with different ranges.

Main Feature :
Serial No. :

Specification

Email：464560351@qq.com

Whatsapp: +8618620373879

Introduction

General-purpose tension meter measure line tension of fibers, wire, fiber optics, cable and other materials.

The TesterMeter-NT seres has 10 kinds of tension ranging from 1.0-200.0cN to 10.0-100.0daN.The width of the measuring head varies with different ranges.

Features

The patented technology automatically resets the meter to zero , which improves the measurement accuracy and faclitates measurement.
Equipped with a wire diameter compensator which compensates errors caused by different wire diameters and improves measurement accuracy
Equipped with lead frame and guide wheel movement structure, it is easy to capture the tested material.
V-groove aluminum measuring guide roller with ball bearing.
Rugged, non-slip aluminum case, resistant to electrical interference.
LIPO lithium-ion polymer battery (about 60 hours of continuous operation).
The tested material, the guide rollee nd th scree are locatedon the same plane.During the test data,the status of the guide roller and the tested material can be seen.
A maximum of 10 materials can be accurately calibrated. With the wire diameter compensator the tested wire diameter range is larger.
character menu setting interface, easy to operate.
According to different ranges and needs, the measurement value display unit can be selected g, kg, c N,N, daN, lb
It can record the maxinmum value, mininmum value,peak value and average value in the measurement process, and can also store 10 independent measurement values.
Programmabeseting of the maximun and minimurn value of the trend staus br ceary detemine the range of tension hange, and have the advantages of mechancal nstumenttrend display.
Provides fine adjustment of display results. If There is a slight deviaton between th material measured on site and standrd clibration material, and accurate values can be displayed without recalibration.
Function settings can be protected by passwords to improve setting security.

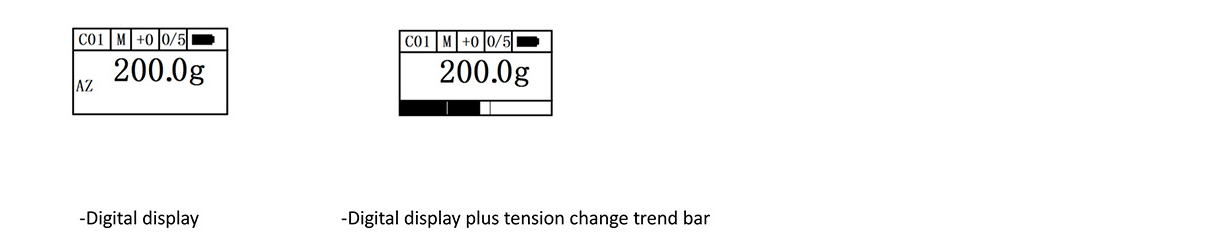

Betten tensiometer provides tio display modes,taking into account the advantages of accurate elecronic tensiometer reading and mechanial tensometer trend display.

Model TesterMeter-NT

Model	Tension range	Measuring head width	Diameter range	Calibration material (Polyamide Monofilament)	wire diameter compensation
NT-200	2.0-200.0 cN	65mm	0.05-0.15mm	φ0.12mm	yes
NT-500	5.0-500.0 cN	65mm	0.05-0.2mm	φ0.12mm+φ0.2mm	yes
NT-1000	10-1000 cN	65mm	0.1-0.5mm	φ0.2mm+φ0.4mm	yes
NT-2000	20-2000 cN	116mm	0.3-0.7mm	φ0.4mm+φ0.7mm	yes
NT-2500	25-2500 cN	116mm	0.3-0.7mm	φ0.4mm+φ0.7mm	yes
NT-5000	50-5000 cN	116mm	0.4-1.0mm	φ0.7mm+φ1.2mm	yes
NT-10K	0.1-10.0daN	116mm	0.7-1.2mm	φ0.8mm+φ1.0mm	yes
NT-20K-F	0.2-20.0daN	116mm	1.0-1.8mm	φ1.2mm	yes
NT-30K-F	0.3-30.0daN	216mm	Customer specified wire diameter range	Customer specified materials	yes
NT-50K-F	0.5-50.0daN	216mm	Customer specified wire diameter range	Customer specified materials	yes
NT-60K-F	0.6-60.0daN	216mm	Customer specified wire diameter range	Customer specified materials	yes
NT-100K-F	1-100daN	216mm	Customer specified wire diameter range	Customer specified materials	yes

Unit conversion: 1daN = 10N = 1.02kg 1cN = 1.02g

Specifications

Accuracy	(factory calibration material)1% full scale (FS), (other materials) 3% FS.
Display update frequency	0.5 seconds
Optional units	gf, cN,N, kgf, daN, LB (switchable units are different for different ranges)
Adjustable range	The displayed value can be adjusted within ± 10 steps of 1% of full scale according to the site requirements
Line speed	1000m / min
Stored value	Maximum, minimum, maximum peak, minimum peak, average
Display	Dot-matrix LCD
Shell size	76× 46 × 275mm
Power	Lithium-ion rechargeable battery, continuous working for about 60 hours
Operating temperature	10-45°C, 90% relative humidity or less
Shipment include	tension meter, instruction manual, certificate, charger, instrument box
Accessories	Instrument, instruction manual, certificate, charger,instrument box

Application

Standing machine, winding machine,wire cutting machine, cabon fiber winding equipment, optical fiber winding equipment, optical cableProducton equipment, glass fiber winding equipment,steel cord production equipment, tire production equipment wire rope production equipment.
