INTRODUCTION
| TesterMeter-T238A,High-temperature melt pressure sensor for melt-blown cloth equipment MEWOI-T238A / T238B series of high temperature melt pressure sensors can be used in melt blown cloth equipment and non-woven equipment.It is a high-temperature melt pressure sensor with a straight tube. |
MAIN FEATURE
| Internal 80% calibration signal Diaphragm * Temperature resistance 350℃ Good stability and repeatability Standard diaphragm is 15-5PH stainless steel Easy to install |
DESCRIPTION

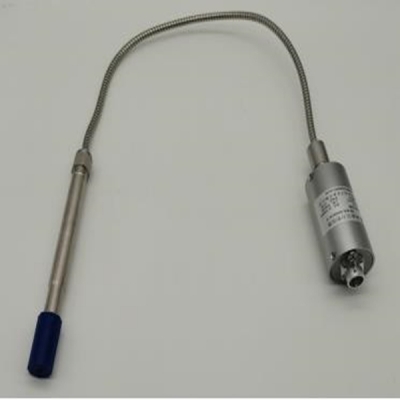

MEWOI-T238A series high temperature melt pressure sensor is a flexible tube standard pressure sensor, commonly known as "hose". This series can be equipped with fast temperature measurement components, which can realize temperature and pressure monitoring at the same time. The company's other series of pressure gauges, digital tables. 3. The measurement and control instruments are used together to fully realize the pressure measurement and control. The internal calibration signal can reach about 80%. It can be widely used in the pressure measurement of chemical fiber textile, polyester, plastic and rubber extrusion industries |
Specifications
| Pressure range: | Any choice within the range of 0 ～ 3.5 ～ 300MPa |
| Overload pressure: | 1.5 X FS |
| Comprehensive accuracy: | ± (0.25, 0.5) |
| Output signal: | 4 ～ 20 (MA), 0 ～ 5, 0 ～ 10 (VDC) |
| Input voltage: | 24VDC (12-36V) |
| Repeatability: | ± 0.2% FS |
| Response time: | ≤5ms |
| Internal self-calibration: | 80% FS ± 1% |
| Diaphragm temperature resistance: | 400 |
| Diaphragm material: | 17-4PH coated stainless steel |
| Electrical connection: | aviation, Hessman, directly sealed leads |
| Process connection: | regular or specified |
