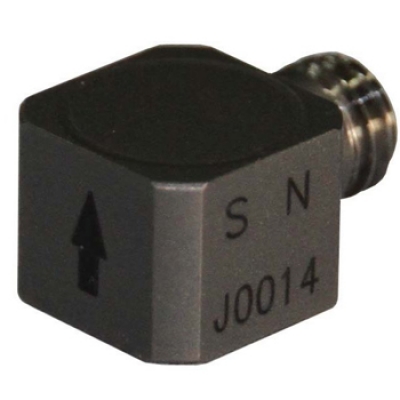

SW13232 SW Series Single-Axis Accelerometer
SW series accelerometers are traditional accelerometer based on piezoelectric ceramics technology, using imported ceramic sensing element, titanium shell and Microdot connector. Performance and appearance can be comparable with leading competitors’ products. BSWA has a strict quality control system and each accelerometer has to pass environmental experiments with military standard before it leaves the factory, which lead to meet the needs of defense field or routine testing. Accelerometer cable is the most easily damaged parts and BSWA has enhanced the connectors and cables to improve the life of product. |
Function • ICCP Power Supply Single Axis Accelerometer • Small Size And Light Weight • Imported Ceramic Sensing Element Application: • Routine Vibration Testing • Automotive, Railway And Aerospace NV • Modal Analysis • OPTA Testing |
Specification | Value |
Model | SW13232 |
Direction of Measurement | Single Axis |
Sensitivity (±5%) | 50mV/g |
Measurement Range | ±100g peak |
Frequency Response (±5%) | 1.0Hz ~ 12kHz |
Frequency Response (±10%) | 0.5Hz ~ 14kHz |
Resonant Frequency | 40kHz |
Broadband Resolution | 0.0002g rms |
Non - Linearity | - |
Transverse Sensitivity | - |
Maximum Shock Level | ±800g peak |
Overload Limit (Shock) | ±2000g peak |
Operating Temperature | -50°C ~ 120°C |
Base Strain Sensitivity | 0.0008g/με |
Excitation Voltage | 18VDC ~ 30VDC |
Constant Current Excitation | 2mA ~ 20mA |
Output Impedance | ≤100Ω |
Output Bias Voltage | 9VDC ~ 11VDC |
Spectral Noise (10Hz) | 24μg/√Hz |
Spectral Noise (100Hz) | 8μg/√Hz |
Spectral Noise (1kHz) | 6μg/√Hz |
