Testermeter-Professional Customizable Ph Water Meter 4-20mA 0-5V 0-10V RS485 Output Waterproof Grade IP68 for Environmental Sensors

  • Main Feature :
  • Serial No. : Lisa0842
Contact Us For QuotationEmail:  464560351@qq.comWhatsapp&Wechat:+8618620373879

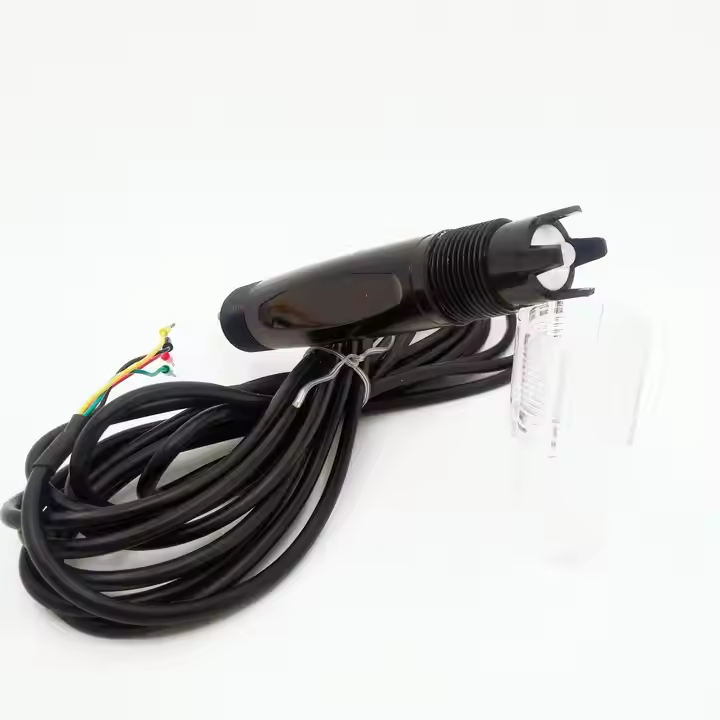

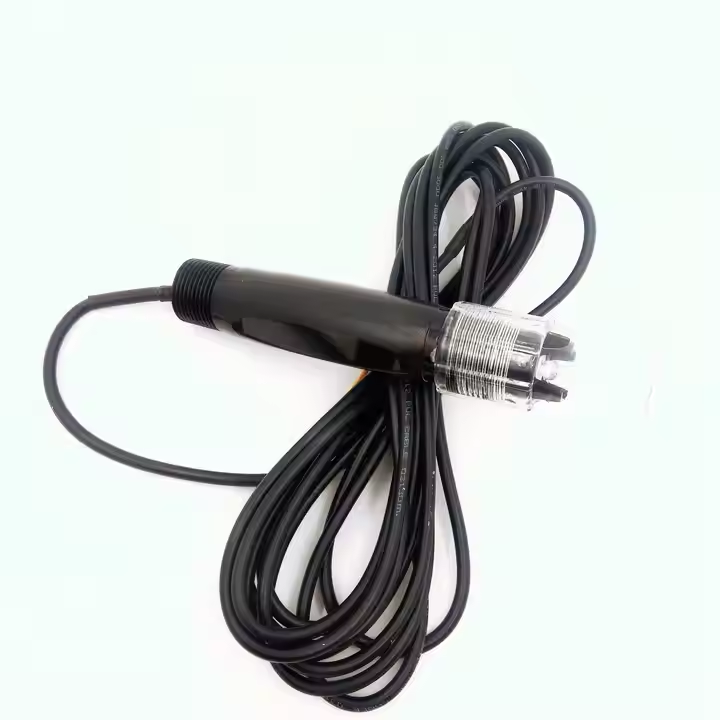

Testermeter-Professional Customizable Ph Water Meter 4-20mA 0-5V 0-10V RS485 Output Waterproof Grade IP68 for Environmental Sensors


Product descriptions

Measurement parameters
Parameters name
Water PH Sensor
Parameters
Measure range
Resolution
Accurancy
PH Sensor
0~14PH
0.01pH; 1mV
±0.02pH; ±1mV
Technical parameter
Stability
≤0.02pH/24 hours; ≤3mV/24 hours
Measuring principle
Principles of Electrochemistry
Output
RS485, MODBUS communication protocol
4 -20 mA (current loop)
Voltage signal (0~2V, 0~2.5V, 0~5V, 0~10V, one of four)
Housing material
ABS
Working environment
Temperature 0 ~ 60℃
Calibration method
Three-point calibration PH=4.0,PH=6.86,PH=9.18
Wide Voltage input
3.3~5V/5~24V
Protection Isolation
Up to four isolations, power isolation ,protection grade 3000V
Standard cable length
2 meters
The farthest lead length
RS485 1000 meters
Protection level
IP68

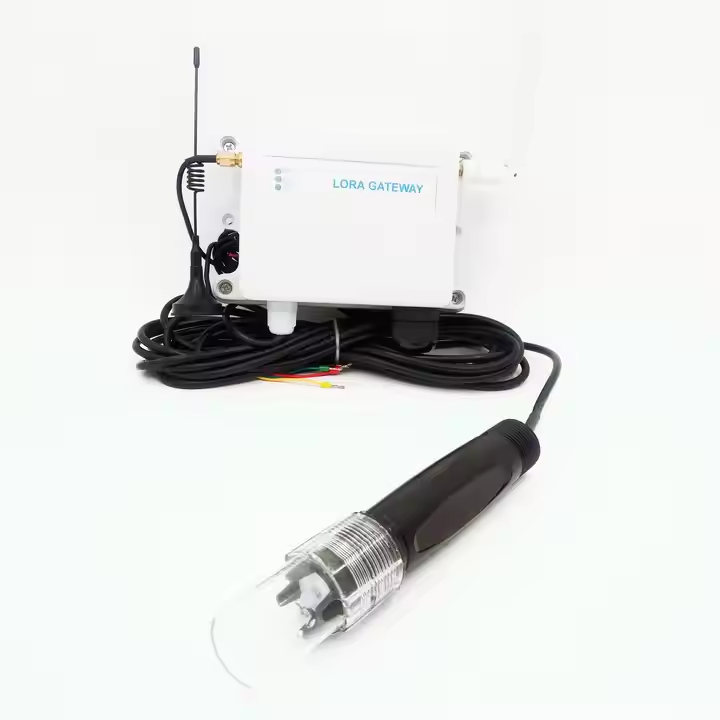

Wireless transmission
Wireless transmission
LORA / LORAWAN, GPRS, 4G,WIFI
Mounting Accessories
Mounting brackets
1.5 meters, 2 meters  the other higth can be customize
Measuring tank
Can be customize
Provide cloud server and software
Software
1. The real time data can be seen in the software
2. The alarm can be set according to your requirement
3. The data can be download from the software
