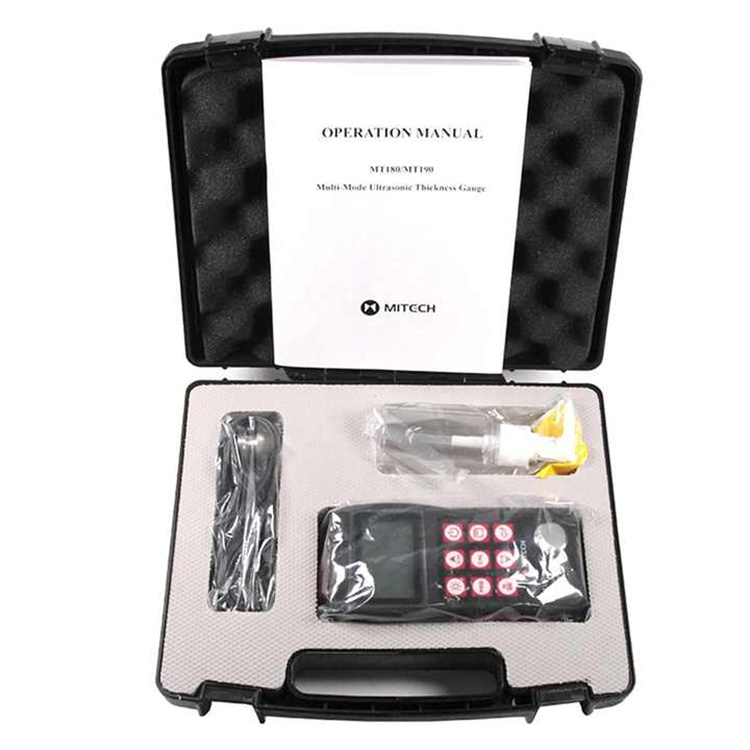

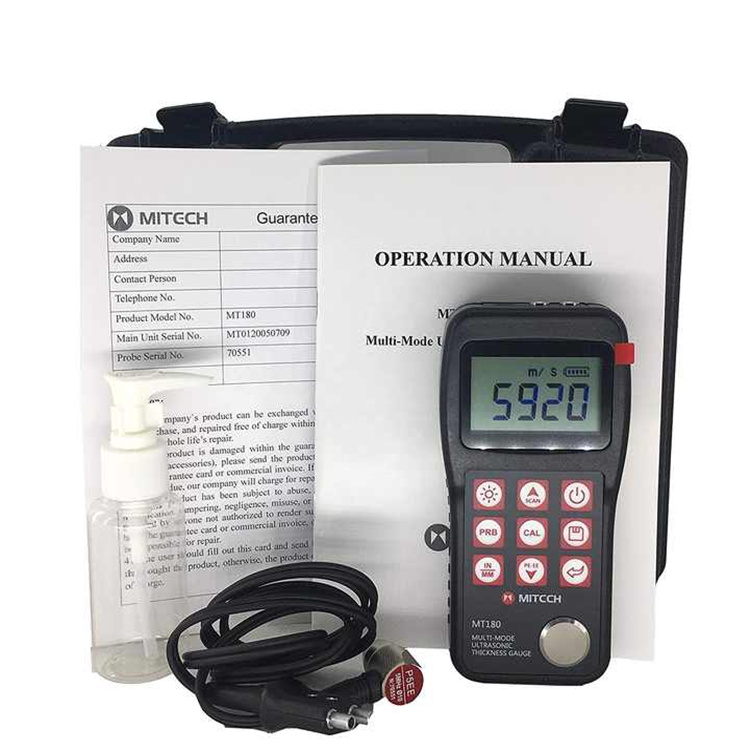

Testermeter-Original MITCCH MT180 Ultrasonic Thickness Meter Gauge Tester MT-180 Measuring Range 0.65mm-600mm
Functions:
Multi-mode: Pulse-Echo mode and Echo-Echo mode. Capable of performing measurements on a wide range of material, including metals, plastic, ceramics, composites, epoxies, glass and other ultrasonic wave well-conductive materials. Transducer models are available for special application, including for coarse grain material and high temperature applications. Probe-Zero function, Sound-Velocity-Calibration function Two-Point Calibration function. Single point mode and Scan mode. Seven measurements readings per second in single point mode, and sixteen per second in Scan Mode. Coupling status indicator showing the coupling status. Units: Metric/Imperial unit selectable. Battery information indicates the rest capacity of the battery. Auto sleep and auto power off function to conserve battery life. Optional software to process the memory data on the PC. |
Product Parameters:
Name | Specification |
Model | MT180 |
Display | High contrast Segment LCD display (support for EL backlight display) |
Sound Velocity Range | (1000~9999)m/s (Capable for measuring the sound velocity of the object with known thickness) |
Resolution | 0.1mm/0.01mm selectable |
Accuracy | ±0.05mm(≤10mm);±(0.5%H+0.01)mm(>10mm); H refer to the thickness of workpiece |
Unit | Metric/Imperial unit selectable |
Net Weight | 245g |
Size | 150mm×74mm×32 mmMain unit |
