Testermeter-HT-203U Industrial Mobile Phone Thermal Imager 256x192 Infrared Resolution with Eight Color Palettes & Hotspot Tracking

Main Feature :
Serial No. : monica0755

Specification

Contact Us For Quotation

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

Testermeter-HT-203U Industrial Mobile Phone Thermal Imager 256x192 Infrared Resolution with Eight Color Palettes & Hotspot Tracking

Product descriptions from the supplier

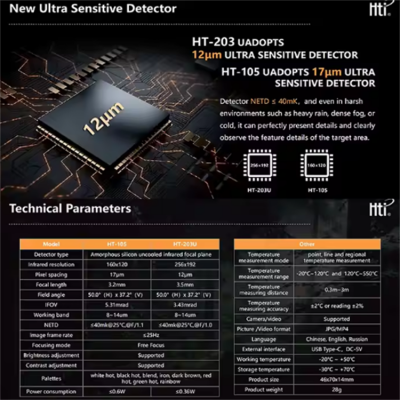

Specification

Model	HT-203U
Detector type	Amorphous silicon uncooled infrared focal plane
Infrared resolution	256x192
Pixel spacing	12μm
Focal length	3.5mm
Field angle	50.0° (H) x 37.2°(V)
IFOV	3.43mrad
Working band	8~14um
NETD	≤40mk@25°C,@F/1.0
Image frame rate	≤25Hz
Focusing mode	Free Focus
Brightness adjustment	Supported
Contrast adjustment	Supported
Palettes	white hot, black hot, blend, iron, dark brown, red hot, green hot, rainbow
Power consumption	≤0.36W
Temperature measurement mode	point, line and regional temperature measurement
Temperature measurement range	-20°C-120°C and 120°C~550°℃
Temperature measuring distance	0.3m~3m
Temperature measuring accuracy	±2°Cor reading ±2%
Camera/video	Supported
Picture /Video format	JPG/MP4
Language	Chinese, English, Russian
Extemal interface	USB Type-C, DC-5V
Working temperature	-20°C~ +50℃
Storage temperature	-30°C~+70°℃
Product size	46x70x14mm
Product weight	28g

Lable: Industrial Mobile Phone Thermal Imager
