Testermeter-HT-02D Thermal Camera 2.4 Inch High-Resolution Color Screen Infrared Imager with Full Viewing Angle for Industrial Use
Product descriptions from the supplier
China Made Cheap Price Mini Handheld Scope Camera Thermal Imager HT-02D
Features:
| Infrared thermal imager that can blend the visible and infrared images. |
| Resolution of infrared image/visible image:1024 pixels/0.3 mega pixels. |
| This infrared imaging device is professional, precision and efficient. |
| For car engine overhaul, transformer room line maintenance, air conditioner repair, etc. |
| Our infrared thermal imager can turn thermal image into visional image, quickly find out the problem area. |
Specifications:
Display | 2.4 inch full viewing angle high-resolution color screen |
Resolution: | 32*32 |
Total Pixel6400 | 10240 pixels |
Resolution of visible image: | 0.3 mega pixels. |
Temperature range | -20℃ to 300℃(-4℉ to 572℉) |
Measuring Accuracy | ±2% or ±2℃(±4℉) |
FOV/Shortest Focal Length | 20× 20/0.5m |
Thermal Sensitivity: | 0.5℃ |
Wavelength Range: | 8-14μm |
Emissivity | 0.1-1.0 Adjustable |
Image Frequency | 6HZ |
Focus Mode | Fixed |

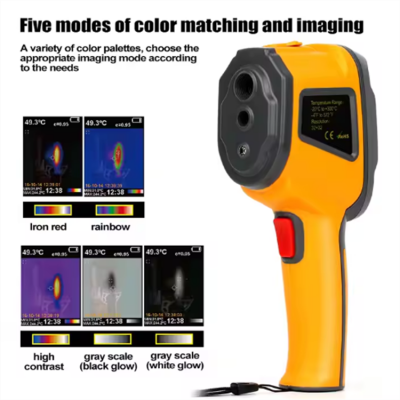

Palette | Iron red,rainbow,rainbow high contrast,gray scale(white glow) and gray scale(black glow) |
Vision Option | 5 kinds of full infrared to the full visual, mixing visible and infrared. |
Image Storage | SD card(4G) |
File Format | bmp |

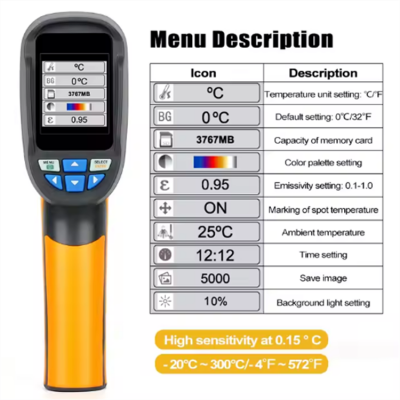

Set Control: | Unit Adjustment/Language/Date Time Format/automatic shut down |
Battery Type | 4 * 1.5V AA battery (Not Included) |
Battery Life | 6 Hours |
Auto Power-off Time | 12 Minutes |
Authentication | CE, RoHS |
Operating Temperature | -5℃ to 40℃ (23℉ to 104℉) |
Storage Temperature | -20℃ to 50℃ (-4℉ to 122℉) |
Relative Humidity | 10%RH to 80%RH |
Item Size | 21.2 * 9 * 6.2cm / 8.3 * 3.5 * 2.4in |
Item Weight | 231.2g / 8.2oz |
Package Size | 27 * 19 * 11cm / 10.6 * 7.5 * 4.3in |
Package Weight | 927g / 32.7oz |

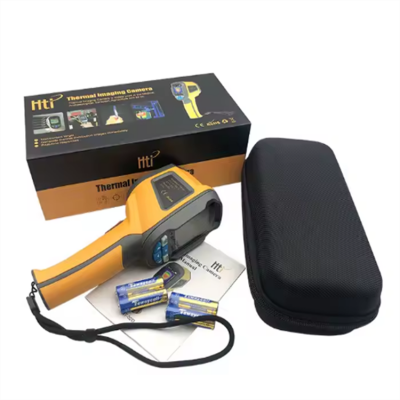

Package Lists | 1 * Thermal Infrared Imager |
