Product introduction

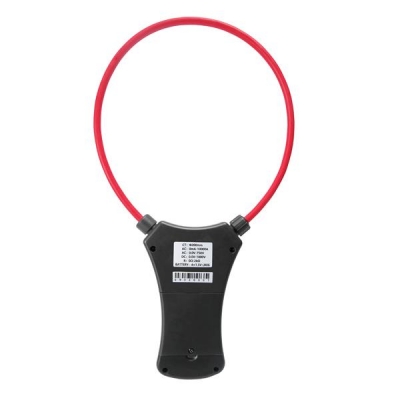

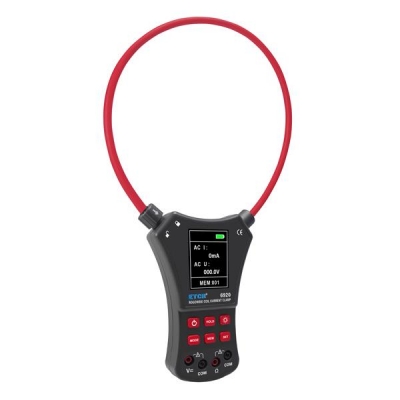

TesterMeter-ETCR6920 flexible high-current clamp meter is carefully developed by our company and is carefully designed and manufactured for field testing of AC large current. It can also be used as an ordinary multimeter to measure AC voltage, DC voltage, resistance, on-off test, etc. Widely used in electric power, communications, meteorology, railways, oil fields, construction, measurement, scientific research and teaching units, industrial and mining enterprises and other fields. It is especially suitable for places with dense wiring, transformer core current test against the wall, thick wire cable test, relay protection, thyristor rectification, frequency conversion speed regulation, semiconductor switch, power electronic conversion equipment, arc welding and other places where the signal is seriously distorted. Current testing in industrial environments. The flexible current clamp , namely Rogowski Coil (Rogowski coil), adopts advanced Rogowski coil technology, which is a toroidal coil uniformly wound on non- ferromagnetic materials , without hysteresis effect , almost zero phase error, no magnetic saturation phenomenon, linear High accuracy, strong anti-interference ability. The output signal is the differential of the current with respect to time. By integrating the output voltage signal, the input current can be truly restored. The measured current range can range from milliamps to tens of thousands of amperes. The coil part of the flexible current clamp does not have any exposed metal conductors, non-contact measurement, safe and fast; it is small in size, light in weight, beautiful in appearance, soft and flexible, suitable for narrow environments and places with dense wiring; high measurement accuracy, strong reliability, The response frequency is wide, and users can customize the coil length according to their needs. TesterMeter-ETCR6920 flexible high-current clamp meter is small in size and light in weight. It is very light and simple to operate on site and has high measurement accuracy. The instrument has a USB communication interface and can store data. Upload the stored data to the computer through the system software to realize historical data reading, query and storage. , printing and other functions. The instrument also has a backlight function and a data retention function, which is an essential tool for electrician safety testing. |
Technical parameter
Function | AC large current, AC voltage, DC voltage, resistance, continuity test, etc. |
power supply | 6V DC (LR03×4 alkaline dry batteries) |
measurement method | Flexible CT: The output signal is the differential of current with respect to time. By integrating the output voltage signal, the input current can be truly restored. |
Jaw size | Inner diameter Φ200mm |
wire position | The measured wire is in the center of the jaw |
data storage | 600 groups |
Communication Interface | Upload the stored data to the computer for easy data analysis |
Communication line | Communication line, 1.8 meters long |
Frequency | 50Hz/60Hz automatic identification |
shift gear | Automatic switching |
sampling rate | About 2 times/second |
display mode | 2.8-inch TFT color LCD screen; display area 58mm×44mm |
Meter size | 200mm×370mm×35mm |
backlight | Yes, "*" key control |
data retention | Data hold function: "HOLD" symbol display |
overflow display | Over-range overflow function: "OL" symbol display |
Automatic shut-down | After about 10 minutes of no operation after starting up, the instrument will automatically shut down to reduce battery consumption |
battery voltage | When the battery voltage drops to about 4.8V, the meter will display a reminder to replace the battery. |
Instrument quality | Meter: about 272g, total mass about 755g (including battery and accessories) |
Working current | Backlight on 80mA; backlight off 40mA |
Working temperature and humidity | -10℃~40℃; below 80%rh |
storage temperature and humidity | -10℃~60℃; below 70%rh |
Dielectric strength | AC 3700V/rms (between core and case) |
Suitable for safety regulations | IEC1010-1, IEC1010-2-032, pollution degree 2, CAT Ⅲ (600V) |
Product number
product model | electric current Range | Voltage Range | resistance Range | Power, power factor, energy, frequency, phase | Coil the inside diameter of |
TesterMeter-ETCR6900 | 0.00A~10000A | / | / | / | Φ200mm |
TesterMeter-ETCR6920 | 0mA~10000A | 0.0V~750V AC 0.0V~1000V DC | 0Ω~2kΩ | / | Φ200mm |
TesterMeter-ETCR6920B | 0mA~10000A | 0.0V~750V AC 0.0V~1000V DC | 0Ω~2kΩ | / | Φ300mm |
