Testermeter-ETCR8300 Long Life Time Three Channel Clamp Current Tester for Troubleshooting Circuit Insulation

Product descriptions

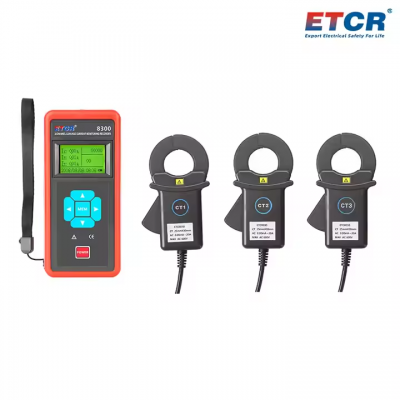

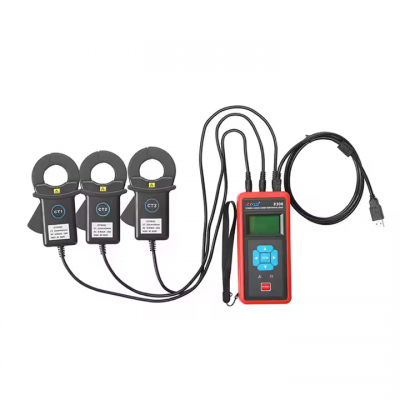

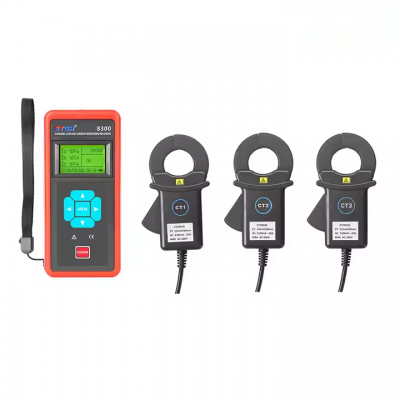

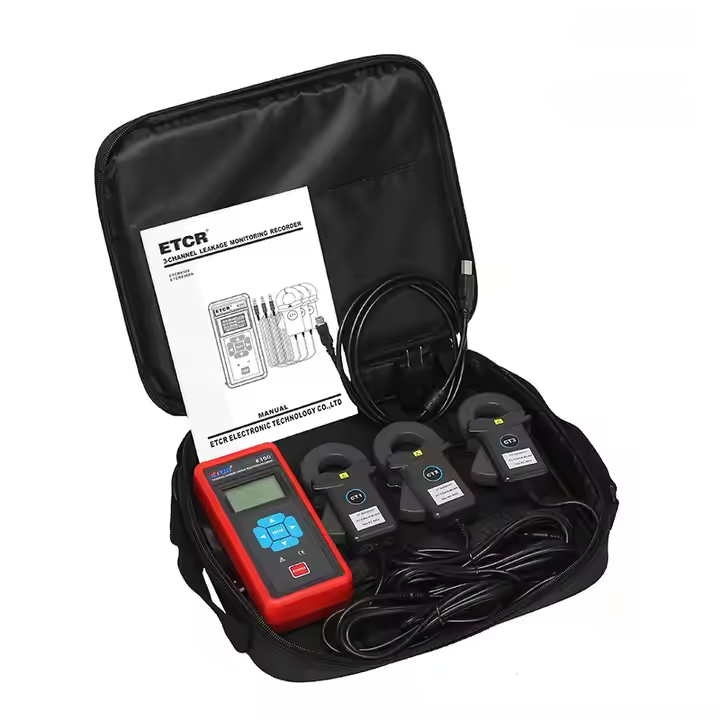

ETCR8300 Three Channel Clamp Leakage Current Recorder
Product Function
At the same time online monitoring and recording 1 ~ 3 channel AC leakage current and current, used for circuit insulation fault troubleshooti ng, monitoring intermittent leakage fault, check the happen time of insulation fault and maintenance lines, etc.
Product Features
1. The current clamp adopts magnetic shield and digital integration technology, which has strong anti-interference and high precision. The host can configurable 1-3 PCS current clamp, the user chooses and purchase according to the demand.
2. Equipped with rechargeable lithium battery, long duration, which can continues working about 168 hours continuously in power-saving mode, replace battery will not lost data.
3. System clock function. Data storage function, large storage space for 200,000 groups
4. With USB interface, communication cable and software, data upload software ,with functions of historical data reading, review, saving, reporting, etc.
Monitor Specification
Monitor Model	ETCR8300	ETCR8300A
Range	0.0mA~20A	0mA~500A
Resolution	0.01mA	1mA
Accuracy	±1%rdg±5dgt	±1%rdg±5dgt
Jaw Size	25mmX30mm	35mmX40mm
CT Size	115mmX70mmX33mm	125mmX70mmX37mm
Power Supply	Rechargeable lithium battery DC3.7V, 2600mAh
Current Clamp Quantity	1-3 PCS (choose according the demand)
Weight	Host: about 292g; Current clamp: 180g/PCS
Meter Dimension	78mm(L)X165mm(w)X42mm(H)
LCD Size	Display area: 44mmX27mm
USB Interface	With USB interface, storage data can be uploaded to computer
Data Storage	200,000 groups (Power down or replace battery will not lose the data)
Record Period	Set the record interval time within 1 second ~ 99 minutes, 0 seconds is not automatically stored.
Record Time	Interval time 1 seconds, can continues recording 48 hours
	Interval time 10 seconds, can continues recording 120 hours
	Interval time 1 minute, can continues recording 168 hours
Download Speed	60KB/ Min
Overflow Display	Exceed measure range overflow function: "OL" symbol display

Lable: ETCR8300 Channel Clamp Current Test
