Testermeter-CE Certified SDI-12 RS485 Solar Powered Weather Station LoRaWAN/GPRS/4G/WiFi Wireless for Photovoltaic Power Monitoring

2025-07-03 15:49:38

Main Feature :
Serial No. : Lisa0839

Specification

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

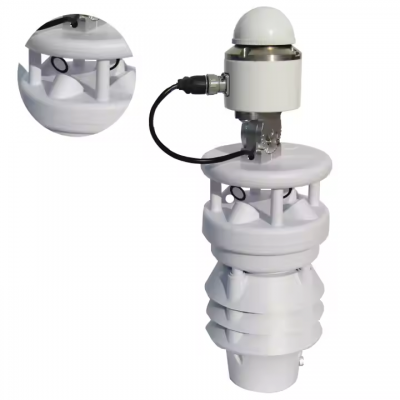

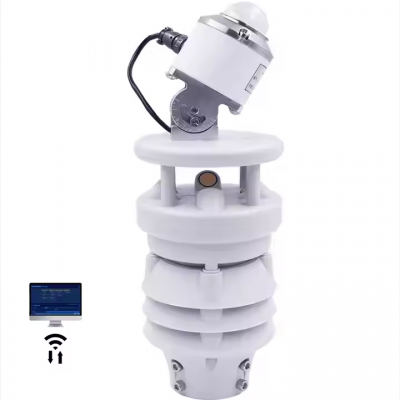

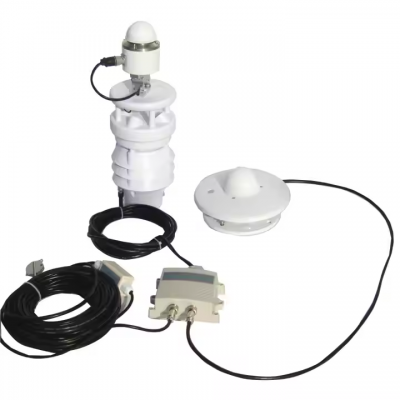

Testermeter-CE Certified SDI-12 RS485 Solar Powered Weather Station LoRaWAN/GPRS/4G/WiFi Wireless for Photovoltaic Power Monitoring

Product descriptions

Measurement parameters
Parameters Name	Weather station 6 in 1: Air temperature, Air relative humidity, Atmospheric pressure,Module temperature, Ultrasonic wind speed and direction ,Pyranometer
Parameters	Measure range	Resolution	Accurancy
Air temperature	-40-85℃	0.01℃	±0.3℃（25℃）
Air relative humidity	0-100%RH	0.01%	±3%RH
Module temperature	-20 ℃ ~ + 80 ℃	0.1℃	≤ ±0.2℃
Atmospheric pressure	500-1100hPa	0.1hPa	±0.5hPa（25℃，950-1100hPa）
Wind speed	0-60m/s	0.01m/s	±（0.3+0.03V）M/S;V≤30M/S ±（0.3+0.05V）M/S;V≥30M/S
Wind direction	0-359.9°	0.1°	±3°
Total solar radiation	0 ~ 2000W/m2	1W/m2	≤ ± 3%
Total radiation cumulant	Spectral range: 300 ~ 3200nm	Measurement accuracy: 5%	Update period: 1min
* Other customizable parameters	Radiation, PM2.5,PM10,Ultraviolet, CO,SO2, NO2, CO2, O3
Monitoring principle	Air temperature and humidity: Swiss digital temperature and humidity sensor
	Wind speed and direction: Ultrasonic sensor
	For the total solar radiation: It integrated photovoltaic environmental monitor comes standard with TBQ-2C-D thermopile principle total radiation meter, Users can choose EKO/MS-802 (Class A), MS-60 (Class B) and MS-40 (Class C) total radiation meters. Kipp & Zonen /CMP6 (Class B), CMP10 (Class A) Total Radiation Tables
Technical parameter
Operating temperature	-40 ℃-80 ℃
Output signal	RS485 Communication, Modbus Protocol
Power supply	DC12-24V
Regulating disk of solar radiation meter	Adjustable range from 0 to 60 (40 for general standard)
Protection level	IP65
Fixed mode	Sleeve type (optional adapter)
Fixed bracket	1.5 m and 1.8 m brackets can be selected
Remarks	It integrated photovoltaic environmental monitor comes standard with TBQ-2C-D thermopile principle total radiation meter,Users can choose EKO/MS-802 (Class A), MS-60 (Class B) and MS-40 (Class C) total radiation meters. Kipp & Zonen /CMP6 (Class B), CMP10 (Class A) Total Radiation Tables

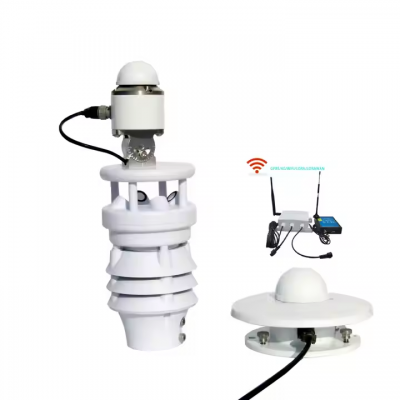

Wireless transmission
Wireless transmission	LORA / LORAWAN(eu868mhz,915mhz,434mhz), GPRS, 4G,WIFI
Cloud Server and Software introduce
Cloud server	Our cloud server is bind up with the wireless module
Software function	1. See real time data in the PC end
	2. Download the history data in excel type
	3. Set alarm for each parameters which can send the alarm information to your email when the measured data are out range.
Mounting Accessories
Equiment case	Stainless steel waterproof
Ground cage	Can supply the matched ground cage to burried in the ground
Lightning rod	Optional(Used in thunderstorm places)
LED display screen	Optional
7 inch touch screen	Optional
Surveillance cameras	Optional
Solar power system
Solar panels	Power can be customized
Solar Controller	Can provide matched controller
Mounting brackets	Can provide the matched bracket

Lable: Certified LoRaWAN
