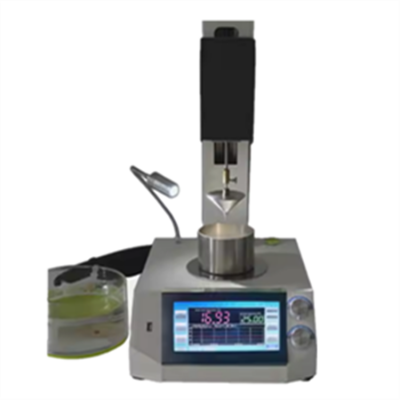

Testermeter-ALG635 ASTM D217 ASTM D217 Automatic Lubricating Grease Cone Penetration Tester
Main Technical Indicators And Parameters
No. | Technical parameters | Technical indicators |
1 | Measuring range | 0 ~ 620 cone penetration |
2 | Constanttemperature of waterbath | 1. "Temperature measurement range" 0.00~ 99.99℃; 2. "Temperature control range" Low temperature: 20 ℃ lower than ambient temperature, high temperature: 60.00 ℃; 3. "Display resolution" 0.01℃; 4. "Temperature control accuracy"≤±0.5℃; |
3 | Time control | 1. "Time display and control" 0-60 seconds (arbitrary setting); 2. "Display resolution" 0.1 seconds; 3. "Time control accuracy"≤ ±0.1 S; |
4 | Displacement | It adopts high-precision LVDT displacement sensor, split structure, and there is no friction when the taper rod falls. 1. 1. "Base range" 0-640mm 2. "Display resolution" 0.01mm( 0.1 penetration;); 3. "Relative displacement accuracy" ≤±0.1mm; |
5 | Store data | 200 |
6 | Assembly of sliding parts | The total mass of the full-size assembly is 150 ± 0.05g. Among them: The mass of full-size cone is 102.5 ± 0.05g, and the mass of cone rod is 47.5 ± 0.05g; It meets the requirements of GB/T 269-91; |
7 | Overall dimensions | 390mm × 310mm × 575mm (length × width × height); |
8 | Working power supply | 220±10%VAC/50Hz; |
9 | Whole machine power | Maximum 350W; |
10 | Net weight of wholemachine | 12.5Kg; |
