testermeter-AD85-120L/min Laboratory Anticorrosive Diaphragm 120L/min Vacuum Pump

  • Main Feature :
  • Serial No. : monica0662
Contact Us For QuotationEmail:  464560351@qq.comWhatsapp&Wechat:+8618620373879

testermeter-120L/min Laboratory Anticorrosive Diaphragm 120L/min Vacuum Pump

Product descriptions from the supplier

Products Description

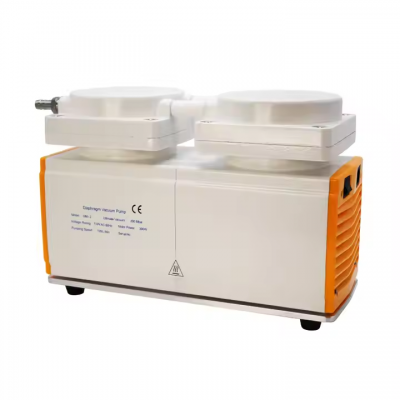

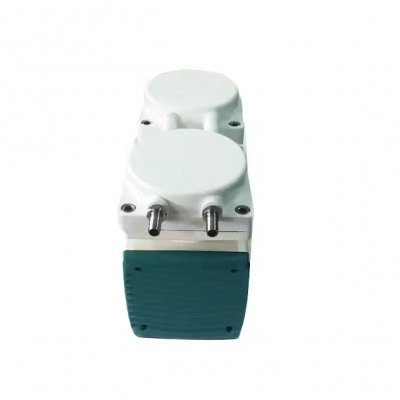

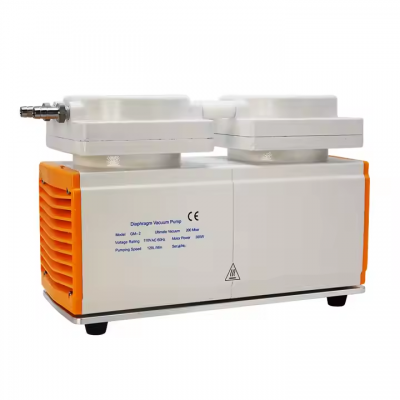

West Tune GM-2 120L/min Oil Free Anti-corrosive Diaphragm Pump


West Tune GM series Diaphragm Vacuum Pump has the features of continuous oil free pumping, low noise level, higher efficiency, long lifetime. It is anticorrosive pumps through Teflon treatment, the parts which contact with the gas are PTFE material, it si suitable for the corrosive chemical, phamaceutical, petrochemical gases etc. It is used for vacuum filtration, reduced pressure distillation, rotary evaporation, vacuum concentration, centrifugal concentration, solid phase extraction etc. It is very high cost performance product with quality reliability, unique structural design to mee the various needs of the laboratory.
- Corrosion resistance, able to tolerance almost all strong acid(including aqua regia), strong alkali, strong oxidizer, reductant, and variety of organic solvents. - With stand high and low temperature, can be used in temperature of -190℃ to 260℃. - Non-stick surface, most solid material and impurity particles can not conglutinate on the surface.

Specifications

Speed of evacuation120L/min (4.2cfm)
Ultimate pressure vacuum0.08Mpa (200 mbar)
Voltage220V50Hz or 110V/60Hz with NEMA 5-15p cable
Motor power (w)300w
Pressure≥30Psi
Inlet & Outlet (mm)Ø 9
Pump head2
Dimensions (L*W*H)39*15*25cm (15.4*5.9*9.8’’)
Noise level (DB)<60
Weight20kg (44lb)
DiaphragmNBR
ValvesNBR
