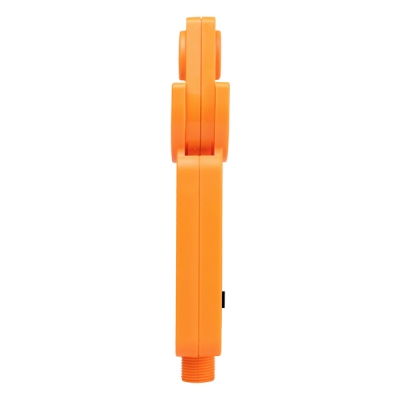

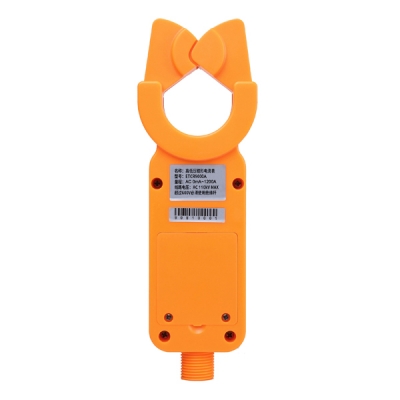

TesterMeter-ETCR9000A H/L Voltage Clamp Current Meter with Bluetooth

  • Main Feature : 1.Model No.: TesterMeter-ETCR9000A 2.Measuring range: 0mA~1200A 3.Max resolution: 1mA 4. CT size: Φ48mm 5. Data storage: 99 groups 6. Communication mode: Bluetooth transmission, straight line transmission distance 10m 7.Power supply: DC 7.4V 600mAH, ablelithium battery
  • Serial No. :
Contact Us For QuotationEmail:  464560351@qq.comWhatsapp&Wechat:+8618620373879

INTRODUCTION

TesterMeter-ETCR9000A Bluetooth Version H/L voltage Clamp Current Meter is designed and manufactured for measuring high voltage current below 110KV, high altitude current (need to install insulating rod) and low voltage current. The instrument adopts precision CT technology and mask digital integration technology. The instrument is composed of a special clamp ammeter , Bluetooth APP and insulating rods, when testing high-voltage lines above 600V, insulating rods must be installed. The clamp head guide area of the clamp meter adopts an innovative integrated design, and the clamp head iron core is made of permalloy material, which can test the leakage current. The instrument has Bluetooth function. After downloading the APP on the mobile phone, the test can be performed and the test data can be viewed in real time.

      TesterMeter-ETCR9000A Bluetooth Version H/L Voltage Clamp Current Meter has the functions of peak value hold, data hold, data storage, bluetooth and so on. High precision, high reliability and high stability of uninterrupted testing throughout the year. Widely used in substations, power plants, industrial and mining enterprises, testing stations, electrical maintenance departments for current detection and field electrical work. It can also be used for high and low voltage transformation ratio testing, that is, to measure the high and low voltage currents of the primary circuit and the secondary circuit respectively, and then calculate the high and low voltage transformation ratio. The insulation rod is light and has the characteristics of moisture resistance, high temperature resistance, impact resistance, bending resistance and high insulation.

SPECIFICATION

FunctionDescription

Model

TesterMeter-ETCR9000A H/L voltage clamp current meter with bluetooth

Power supply

DC 7.4V 600mAH, rechargeable lithium battery

Test method

Clamp CT, integral method

Transfer method

Bluetooth transmission, straight-line transmission distance of 10 meters.

Display mode

4-digit LCD display, backlight function, suitable for dark places

LCD size

47mm×28.5mm

Meter size

Detector: 255mm×84mm×39mm; Receiver: 165mm×78mm×42mm

CT size

Φ48mm

Sampling Rate

2 times/second

Measuring range

0mA~1200A (50/60Hz automatic)

highest resolution

1mA

Shift gear

0mA~1200A automatic shifting

Test accuracy

(23℃±5℃, below 80%RH)

0mA~99.9A: ±1%rdg±5dgt

100A~599A:    ±1.5%rdg±5dgt

600A~1200A:   ±2%rdg±5dgt

Data storage

99 groups, "MEM" symbol indication during the storage process, "FULL" symbol flashes to indicate that the storage is full

peak hold

Automatically maintain the maximum test value, usually in the test mode, long press the HOLD button, the PEAK light is on, that is, the peak hold function is turned on, and then long press the HOLD button to cancel this function

line voltage

Test below 110kV, operate with insulating rod

Data retention

In normal test mode, press the HOLD key to keep the data, the "HOLD" symbol is displayed, and then press the HOLD key to cancel

Data review

"MR" symbol indication, can browse the stored data up and down

Overflow display

Over-range overflow function: "OL A" symbol display

Automatic shut-down

About 15 minutes after starting up, the instrument will automatically shut down to reduce battery consumption (it will not automatically shut down when connected to Bluetooth)

Battery voltage

When the battery power is low, the low battery voltage symbol will be displayed to remind the meter to be charged

Instrument quality

Detector: about 342g (including battery)

Total mass of the instrument: about 6kg (including insulating rod)

Working temperature and humidity

-10℃~50℃; below 80%RH

Storage temperature and humidity

-10℃~60℃; Below 70%RH

Interference

No 315MHz, 433MHz co-frequency signal interference

Insulation rod size

about 4300mm

Insulation rod withstand voltage

AC 110kV/rms ( the telescopic insulation rod is fully opened, between both ends )

Selection Guide

MODEL

Rangehighest resolution

Max resolutionCT size

CT size

Note

TesterMeter-ETCR9000

0mA-1200A

1mA

Φ48mm

Base type

TesterMeter-ETCR9000A

bluetooth type

TesterMeter-ETCR9000B

Wireless

TesterMeter-ETCR9020

0.00mA-60A

0.01mA

Φ48mm

Base type

TesterMeter-ETCR9020A

bluetooth type

TesterMeter-ETCR9020B

Wireless

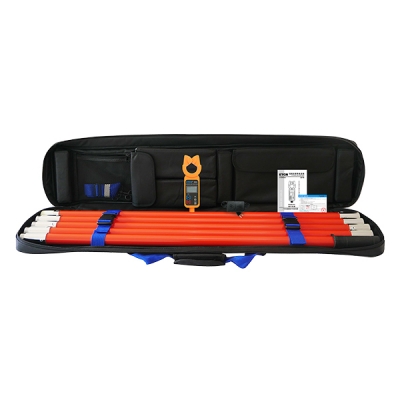

Packing Details

PackageOuter PackageCarton
Inner PackageCloth bag
AccessoryMeter1 PCS
Insulation Rod (1M)5 PCS
Tool Bag1 PCS
Manual1 PCS
Certificate1 PCS
Warranty Card1 PCS
