INTRODUCTION
TesterMeter-CKT9930A/31A ground continuity tester can output test current DC 10~100A (only CKT9931A), ground resistance test range 0.1μΩ~600mΩ, stable test and high accuracy. With test line abnormality detection function, there are 6 groups of test modes, which can realize programmable test and sorting. RS485 interface is optional, and instrument networking can be easily realized through MODBUS communication protocol. Comply with photo voltaic standards IEC61215, IEC61730. |
FEATURES
· Simultaneous display of test current, test resistance and test time ·Constant current linear amplification output ·Test time can be set arbitrarily ·Sound and light alarm function |
Technical Parameter
Model No. | CHT9930A | CHT9931A |
1,Display: | 95mm*20mmmonochromeLCD | |
2,Test Parameter: | Ground resistance | |
3,Basic Accuracy: | ±(1%+3digits) | |
4,Output Current: | Program control 10A~60A DC | Program control 10A~100A DC |
5,Test Range: | 0.0μΩ~600mΩ | |
6, Max. Output Power: | 360W | 600W |
7,Range: | Automatic | |
8,Test Time: | 0.1s~999.9sor continuous | |
9,Comparator: | 3groups of test conditions are saved, sound and light prompts pass or fail | |
10,Display Results: | Current, resistance, sorting result | |

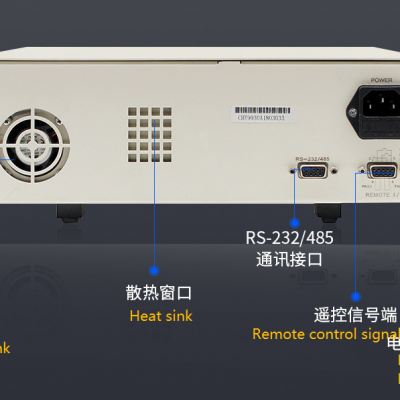

11,Interface: | Handler,RS485, RS232(optional) | |
12,Protocol: | MODBUS | |
13,Power Supply: | Voltage:198VAC~240VAC, Frequency:47Hz-63Hz;rated power:650VA | |
14,Size: | 344mm(length)*280mm(width)*99mm(height)Weight: 5.2kg | |
15,Accessories | Test cable, AC power cord | |
