TesterMeter-Rescue lifting tripod
1、 Scope of application
| The utility model relates to a tripod used for deep wells, high-rise buildings and other high-rise rescue. It is applicable to fire fighting and rescue organizations. |

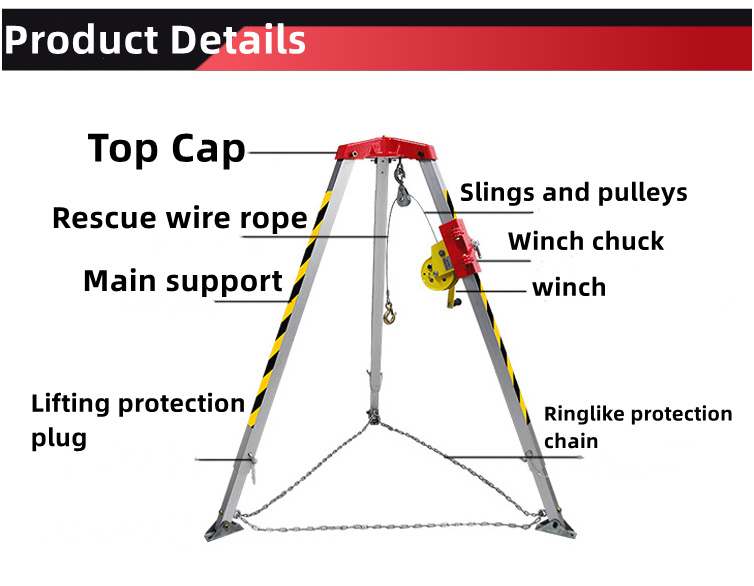

2、 Main features
| 1. The expandable leg made of high-strength light alloy is adopted, with a safety factor greater than 10, and the foot is equipped with a ring type protection chain; |
| 2. The winch is equipped with lifting and lowering self-locking devices to ensure the safety of slings; |
| 3. The sling shall be made of special stainless steel wire rope with good flexibility and will not be damaged due to corrosion or lack of oil; |
| 4. Convenient assembly, the device can be installed at the wellhead and pithead according to local conditions, and is not limited by the uneven ground. |
3,Tripod Parameters
| Blocking force: 22kN | Blocking force: 22kN |

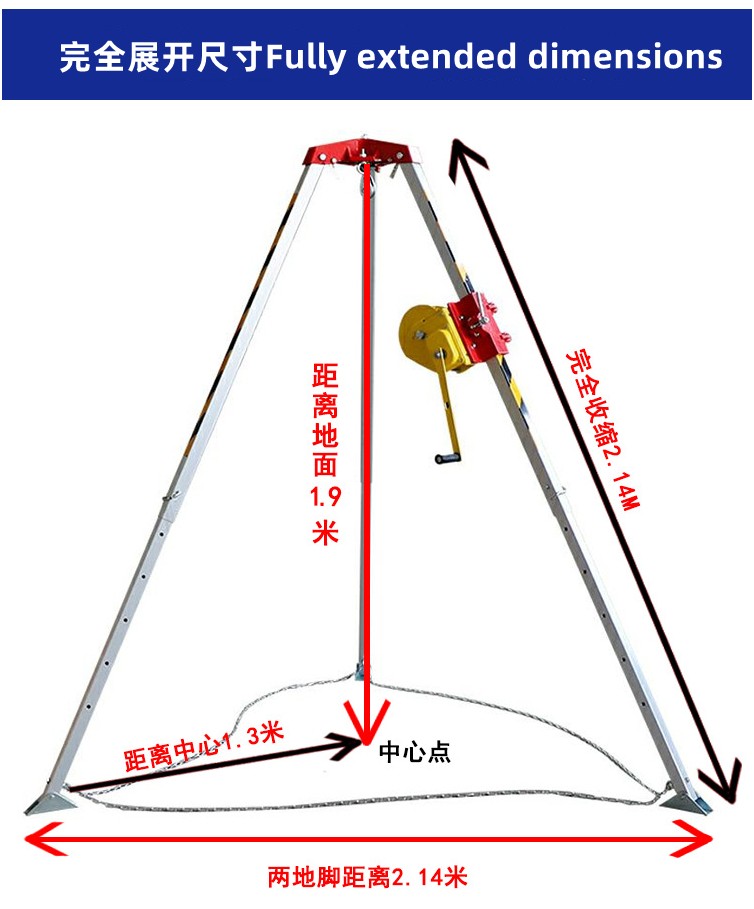

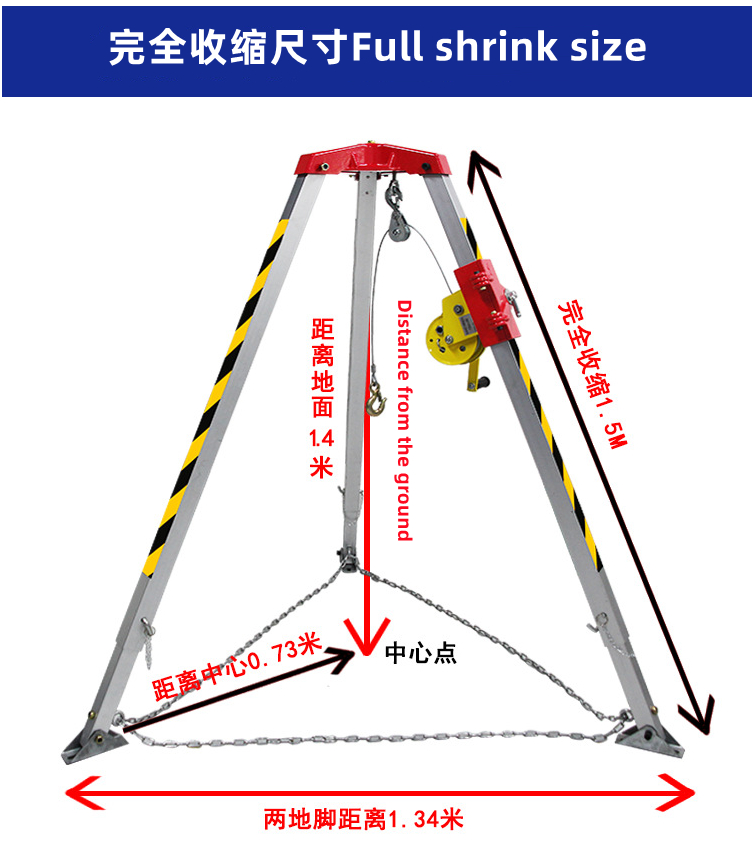

Working height: | 214cm (fully expanded) 134cm (fully retracted) |
| Package specification: | 173 × thirty-nine × 36cm |
4,Winch parameters
Wire rope: | 20M |
Gear ratio: | 8:1 |
| Working load: | 180kg |
| Blocking force: | 1800kg |
| Features: | winch with self-made brake device |
Lable:
Rescue lifting tripod
