2023-07-06 17:14:32

Usage: Ring Main Unit Cable diameter: Less than 40mm Line Voltage: Less than35KV Ambient Temperature: -35℃≤T≤+75℃

  • Main Feature :
  • Serial No. :
Contact Us for QuotationEmail:464560351@qq.comWhatsapp: +8618620373879

Features

Short circuit and earth fault indicator TesterMeter-EKL4.3, have signal remote transmission function. the panel host can connect with 2 sets fault sensors(2pcs earth fault sensors, 6pcs short circuit sensors). Its in the digestion absorption based on similar advanced products at home and abroad, for urban and rural power grid ring network distribution system design of a special automatic monitoring device. In a ring network power distribution system, especially in the extensive use of ring net load switch (Ring Main Unit) system, if happened to the next level in the distribution network system short circuit or earth fault, at the next higher level power supply system must be specified in between the breaker, in order to prevent major accidents. In the breaker protection, belonging to the level of network system all the power. Through the use of this product, can rapidly and accurately indicate the faulty parts, greatly save the lookup part of the time, reduce the outage time and power scope, improve power supply reliability.

Working Principle

When the power supply circuit has a short circuit or earth fault occurs, the short circuit current or earth fault current make electromagnetic field changes, fixed in cable sensors on the measuring coil produce pulse signal, when the value of the pulse signal reach or more than the set of fault current value, fault indicator automatically memory fault state, fault indicator lights flashing issued instructions, at the same time by long range alarm interface, and the fault signal transmitted to the monitoring center, the staff through fault indicator signal can promptly and accurately to line fault location, timely troubleshooting, restore power supply.

Main Function

◆Short circuit fault alarm indication

◆Earth fault alarm indication

◆Low battery alarm indication

◆Remote alarm and reset

◆Automatic reset time (setable:4.8.12.24H; Default 12H)

◆Connect with 2 sets fault sensors(2pcs earth fault sensors, 6pcs short circuit sensors)

◆Test and manual reset

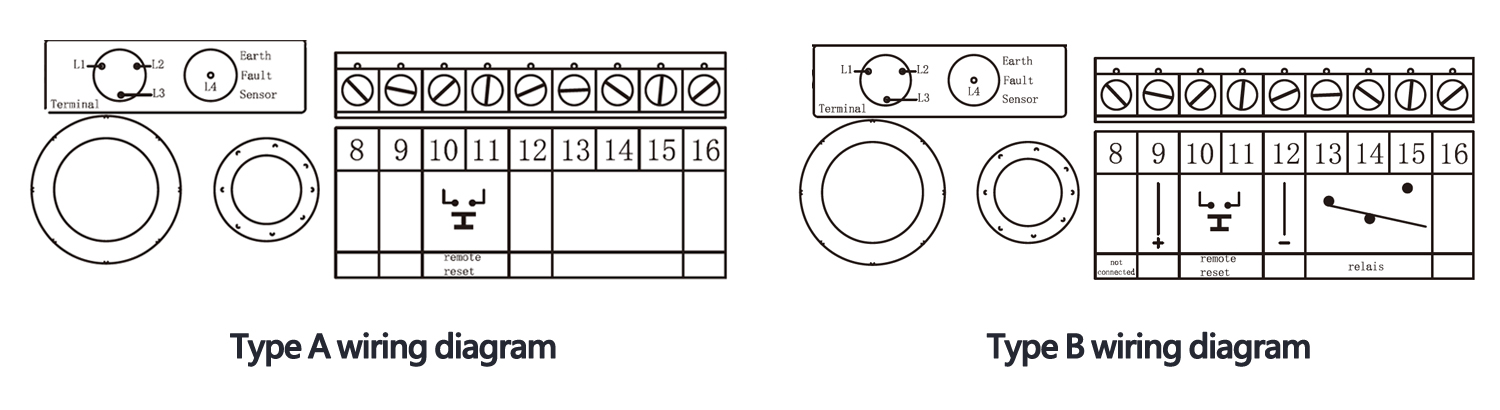

Wiring Diagram

图片关键词

Technical Parameters

Ambient temperature:

-35℃≤T≤+75℃

Relative humidity:

≤85%

Pollution:

JP40

Automatic reset time:

4.8.12.24H (Default 12H)

Line voltage grade:

≤35KW

Battery capacity:

3.6V 2Ah Service life 5 Years

Relay capacity:

AC230V/2A

Earth fault warning current:

≥20A(Default 20A)

Protection class:

IP65

Short circuit  warning current:

≥100A(Default 800A)

Accuracy:< ±10%Action delay time:20-300ms
Short circuit withstand current:≥20kA 2SApplicable line diameter:≤Φ400mm
Weight of whole set:<1000gInstalling hole size:92mm×44mm
