TesterMeter-CBDL-2DH Cable Short Circuit Fault Indicator
TesterMeter-CBDL-2DH Cable Short Circuit Fault Indicator
TesterMeter-CBDL-2DH Cable Short Circuit Fault Indicator
TesterMeter-CBDL-2DH Cable Short Circuit Fault Indicator
TesterMeter-CBDL-2DH Cable Short Circuit Fault Indicator
TesterMeter-CBDL-2DH Cable Short Circuit Fault Indicator

TesterMeter-CBDL-2DH Cable Short Circuit Fault Indicator

2023-07-06 17:16:55

Application: 6-35KV High Voltage Cable Joint Type: Single Presure Spring Type

  • Main Feature :
  • Serial No. :
Contact Us for QuotationEmail:464560351@qq.comWhatsapp: +8618620373879

Characteristic

  This type fault indicator applicable to Cable Distribution Box, Switch Cabinet, Ring Main Unit. It's used to detect the short circuit fault.

 Indicator advanced embedded microchips, the advantages of this fault indicator is intelligent and low power consumption. There is one switch and two indicator lights on the surface of the fault indicator. In the middle of two lights is the photosensitive switch, green light on is normal condition, red light on is fault condition.

 When the line short circuit fault occur, the fault indicator will detection and memory the fault condition, the red light flashes by light and the red light off without light within the automatic reset time. The fault recording will be deleted beyond the automatic reset time.

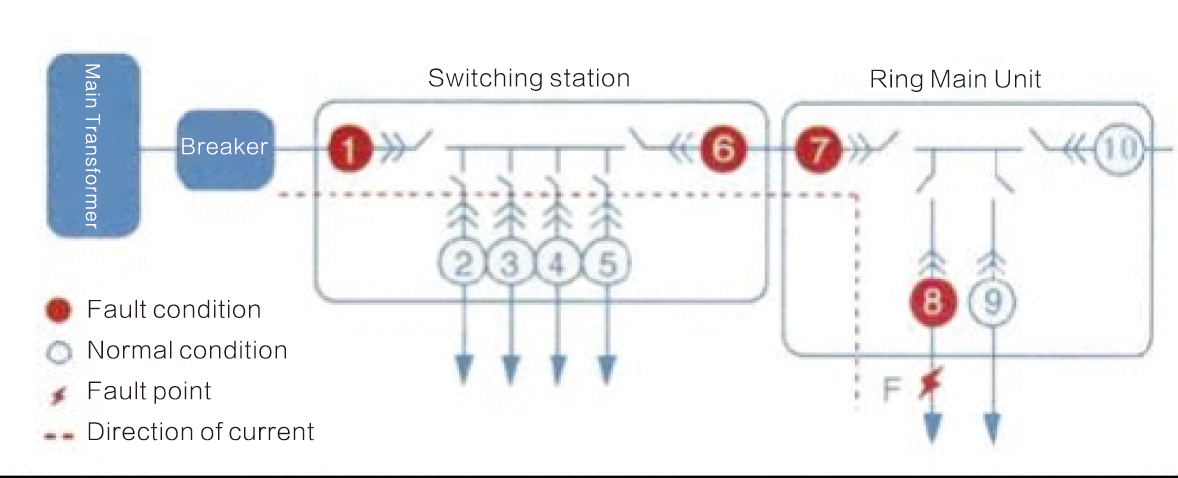

Line Short Circuit Fault Diagram

图片关键词

Technical Parameters

Short circuit warning current:

≥800A

Short circuit action response time:

0.02S≤T≤4S

Working ambient temperature:

-40℃~ +85℃

Working power supply:

3V,2Ah.

Service life:8-10Years

Automatic reset time:

4. 8. 12. 24H

Applicable wire diameter:

≤35mm
