2023-07-13 16:37:16

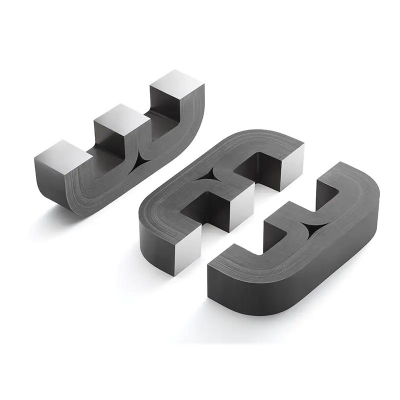

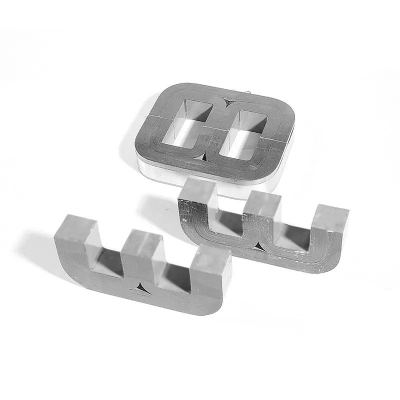

E-core comes in various specifications and is widely used in 50Hz and 400Hz three-phase transformers, reactors, chokes, and other magnetic components of electronic equipment.

Main Feature :
Serial No. :

Specification

Contact US For Quotation

Email:mewoi009@mewoi.com

Whatsapp&Wechat:+8619925688679

Material

High-quality CRGO steels with characteristics of low iron-loss and high permeability in thickness of 0.05mm, 0.08mm, 0.1mm, 0.23mm, 0.27mm, 0.3mm, and 0.35mm.

Characteristic

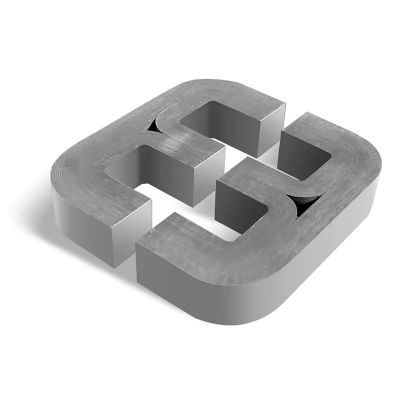

A closed flux path with an open structure can be formed by combining the two halves together. The bobbin and core can be produced separately and then place the core in the bobbin, which can effectively reduce production time.

Application

E-core comes in various specifications and is widely used in 50Hz and 400Hz three-phase transformers, reactors, chokes, and other magnetic components of electronic equipment.

Specifications of standard E-Cores

Lable: E-Core
