AC current, higher harmonic current, complex waveform current, transient impact current, Detection of starting current, phase, electric energy, power, power factor, etc.

  • Main Feature : Range: AC 0A~10000A ~ higher (optional) Line voltage: below AC 1000V CT structure: Rogowski coil Coil diameter: Φ 12mm
  • Serial No. :


Contact Us for QuotationEmail:464560351@qq.comWhatsapp: +8618620373879

Product Introduction

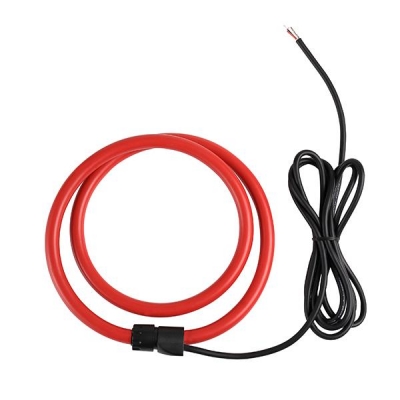

TesterMeter-ETCR-FB series flexible coil current transformer consists of a coil and a handle. The coil part does not have any exposed metal conductors. It is non-contact measurement, safe and reliable; it is small in size, light in weight, beautiful in appearance, soft and flexible, suitable for narrow environments and wiring Dense places; wide measurement range, high precision, strong reliability, wide response frequency (0.1Hz-1MHz), users can customize the coil length according to their needs.

    Using advanced Rogowski coil technology, it is a toroidal coil wound evenly on non-ferromagnetic materials, without hysteresis effect, almost zero phase error, no magnetic saturation phenomenon, and extremely high linearity. The output signal is the differential of the current with respect to time. By integrating the output voltage signal, the input current can be truly restored. The measured current range can range from milliamps to tens of thousands of amperes. It is mainly used for the detection of AC leakage current, large current, high-order harmonic current (up to 400 times), complex waveform current, transient impact current, phase, electric energy, power, power factor, etc. With an integrator, it is easy to integrate into other equipment, such as phase detection analyzers, industrial control devices, data recorders, oscilloscopes, harmonic analyzers, power quality analyzers, high-precision digital multimeters, transient impact recorders, distributed Measuring systems, protection systems, etc.

Technical parameter

  function

  AC leakage current, large current, higher harmonic current , complex waveform current, transient impact current, phase, electric energy, power, work

  rate factor detection

Detection method

  Flexible coil CT: The output signal is the differential of current versus time, and it can be truly restored by integrating the output voltage signal

  Input Current

Coil diameter  Φ12mm
Range  0A~10000A~higher
resolution  10mA
Accuracy class  ±1.0%FS (50Hz/60Hz; 23℃±2℃, below 70%RH, the wire is at the center of the coil)
phase error  ≤0.1°(50Hz/60Hz;23℃±2℃)
Output Interface  3.5mm audio frequency plug/BNC plug/tap (optional), cable length 2M
Electric field interference  No hysteresis effect, no external electric field interference
wire position  The wire to be tested is at the center of the coil, and the influence of position error is ≤ ±0.3%FS
response frequency  0.1Hz~1MHz
line voltage  Line test below AC 1000V
Working temperature and humidity  -20℃~50℃; below 80%rh
storage temperature and humidity  -10℃~60℃; below 70%rh
Dielectric strength  AC 2000V/rms (both ends after the coil is unlocked and unfolded)
Suitable for safety regulations  CAT IV 500V 、CAT 1000V

Model Comparison

Coil modelCoil inner diametercoil lengthCoil qualityCoil diameter
TesterMeter-ETCR50FAΦ50mm160mm80gΦ7.5mm
TesterMeter-ETCR100FAΦ100mm320mm90g
TesterMeter-ETCR150FAΦ150mm480mm100g
TesterMeter-ETCR200FAΦ200mm640mm110g
TesterMeter-ETCR300FAΦ300mm950mm132g
TesterMeter-ETCR500FAΦ500mm1580mm170g
TesterMeter-ETCR1000FAΦ1000mm3150mm290g
TesterMeter-ETCR1500FAΦ1500mm4720mm390g
TesterMeter-ETCR200FBΦ200mm640mm212gΦ12mm
TesterMeter-ETCR300FBΦ300mm950mm274g
TesterMeter-ETCR500FBΦ500mm640mm400g
TesterMeter-ETCR1000FBΦ1000mm3150mm715g
TesterMeter-ETCR2000FBΦ2000mm6300mm1340g
TesterMeter-ETCR3000FBΦ3000mm9420mm1970g
