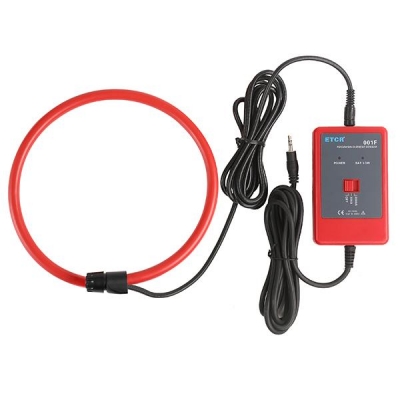

TesterMeter-ETCR001F flexible coil current transformer (with integrator)
TesterMeter-ETCR001F flexible coil current transformer (with integrator)
TesterMeter-ETCR001F flexible coil current transformer (with integrator)
TesterMeter-ETCR001F flexible coil current transformer (with integrator)

TesterMeter-ETCR001F flexible coil current transformer (with integrator)

2023-07-06 10:31:40

AC current, higher harmonic current, complex waveform current, transient impact current, Detection of starting current, phase, electric energy, power, power factor, etc.

  • Main Feature : Range: AC 0A~3000A/6000/10000A (optional) Signal output: full scale corresponds to output AC 0 ~ 1V Line voltage: below 600V CT structure: Rogowski coil Coil diameter: Φ 7.5mm/ Φ 12mm (optional)
  • Serial No. :



Contact Us for QuotationEmail:464560351@qq.comWhatsapp: +8618620373879

Product introduction

TesterMeter-ETCR001F flexible coil current sensor (with integrator) is a separate integrator. The sensor is composed of an integrator and a coil. The separate integrator can be combined with FA and FB coils flexibly and conveniently. There is no exposed metal conductor in the coil part, non-contact measurement, safe and reliable; its small size, light weight, beautiful appearance, soft and flexible, suitable for narrow environments and places with dense wiring; response frequency bandwidth (0.1Hz-1MHz), users Coil lengths can be customized upon request.

    The flexible coil is the differential of current to time. The integrator integrates the output voltage signal (0~1V) to truly restore the measured current and output a complete signal waveform. The measured current range can range from 1 ampere to tens of thousands of amperes. Mainly used for detection of current, high-order harmonic current (up to 400 times), complex waveform current, transient impact current, phase, electric energy, power, power factor, etc. Equipped with an integrator, it can be more conveniently integrated into other test equipment, such as power quality analyzers, harmonic analyzers, power parameter recorders, phase detection analyzers, industrial control devices, oscilloscopes, high-precision digital multimeters, transient Shock recorder, distributed measurement system, protection system, etc.

Technical parameter

1. Range and accuracy

Rangeresolution
Accuracy class
phase error
AC 0A~3000A1A
±1%FS
≤1°
AC 0A~6000A
2a±1%FS
≤1°
AC 0A~10000A
3A±1%FS
≤1°

Note: 50Hz/60Hz; 23℃±2℃, below 70%RH, the wire is at the center of the coil

2. Other parameters


    function

  AC current, high-order harmonic current, complex waveform current, transient impact current, starting current, phase, electric energy, power, work

  rate factor detection

power supply  Zinc-manganese dry battery 6F22 9VDC (can be connected to an external power supply)
Range  AC 0A~3000A/6000/10000A (optional)
signal output  Full scale corresponds to output AC 0~1V
Output Interface  3.5mm audio frequency plug/BNC interface/tap (optional)
output line length  2m
Electric field interference  No hysteresis effect, no external electric field interference
wire position  The wire to be tested is in the center of the coil, and the influence of position error is ≤±0.5%FS
current frequency  45Hz~70Hz (measured current frequency)
response frequency  0.1Hz~1MHz
line voltage  Line test below AC 600V
quality  205g
Integrator size  103mm×65mm×26mm
Working temperature and humidity  -20℃~50℃; below 80%rh
storage temperature and humidity  -10℃~60℃; below 70%rh
Dielectric strength  AC 2000V/rms (both ends after the coil is unlocked and unfolded)
Suitable for safety regulations  CAT IV 500V 、CAT 1000V

Model Comparison

Coil modelCoil inner diametercoil lengthCoil qualityCoil diameter
TesterMeter-ETCR50FAΦ50mm160mm80gΦ7.5mm
TesterMeter-ETCR100FAΦ100mm320mm90g
TesterMeter-ETCR150FAΦ150mm480mm100g
TesterMeter-ETCR200FAΦ200mm640mm110g
TesterMeter-ETCR300FAΦ300mm950mm132g
TesterMeter-ETCR500FAΦ500mm1580mm170g
TesterMeter-ETCR1000FAΦ1000mm3150mm290g
TesterMeter-ETCR1500FAΦ1500mm4720mm390g
TesterMeter-ETCR200FBΦ200mm640mm212gΦ12mm
TesterMeter-ETCR300FBΦ300mm950mm274g
TesterMeter-ETCR500FBΦ500mm640mm400g
TesterMeter-ETCR1000FBΦ1000mm3150mm715g
TesterMeter-ETCR2000FBΦ2000mm6300mm1340g
TesterMeter-ETCR3000FBΦ3000mm9420mm1970g
