TesterMeter-Kanomax 3718-A/3719-A Remote Dust Particle Counter

  • Main Feature :
  • Serial No. :
Contact Us for QuotationEmail:464560351@qq.comWhatsapp: +8618620373879

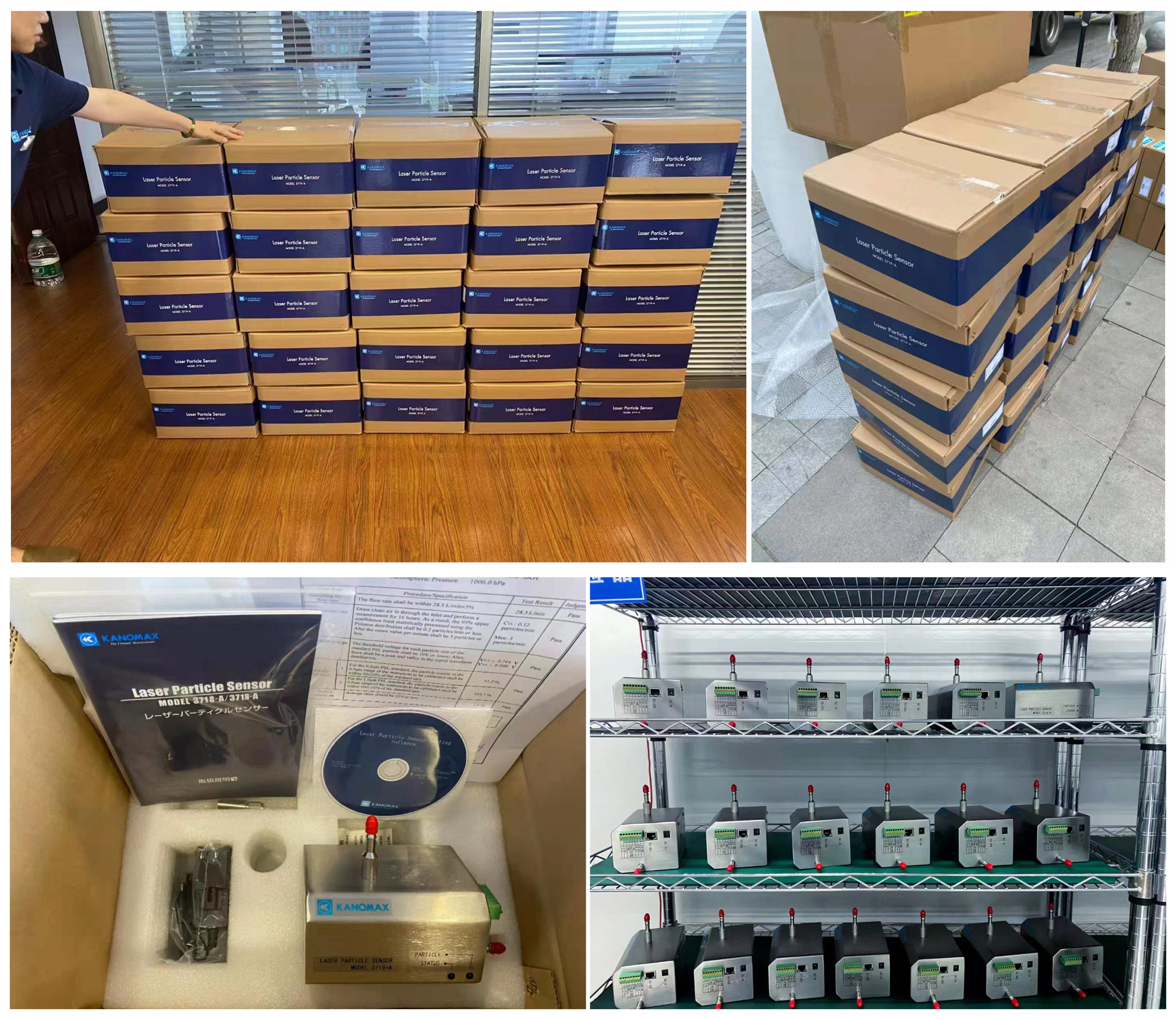

图片关键词

Product introduction

TesterMeter-Kanomax 3718-A/3719-A remote dust particle counter meets JIS9921, ISO21501-4 and ISO14644-1:2015 standards. Two scientifically designed, small and compact products use an external air source and a built-in pressure sensor to ensure the consistency and stability of the flow rate of 28.3L/min; use long-life laser diodes to accurately test particles such as 0.3, 0.5 and 5.0μm ;Adopt 316 stainless steel shell and protective box and do sealing treatment, with super strong resistance to VHP and alcohol vapor, etc., with 2000 sets of data cache, data redundancy backup function, to avoid loss of test data due to system failure or power failure; Standard Modbust protocol and 4~20 mA analog output function, perfectly compatible with the monitoring system, widely used in GMP control areas, isolation areas/systems (RABS), clean rooms, laboratories or industrial applications, to achieve intelligent control and real-time monitoring Changes in the number of dust particle concentrations in the production process in the clean production area, and verify whether the number of dust particle concentrations meets the requirements of production quality control.

Aplications

1. With standard Modbus protocol and 4~20mA analog output function

2. Simultaneous testing of two particle sizes 0.3, 0.5μm or 0.5, 5.0μm

3. Using long-life laser light source, mean trouble-free running time ≥ 10 years, 3-year warranty

3. With 2,000 sets of test data cache, data redundancy backup function

4. 316 stainless steel shell and protective box are used and sealed, with super strong resistance to VHP and alcohol vapor

5. Can output monitoring data, running status and alarm

6. Adopt POE power supply, support hot swap, convenient maintenance and cost saving

Technical parameters

model3718-A3719-A
Particle size0.3、0.5μm0.5、5.0μm
Traffic28.3L/min(1CFM)
light sourceLong-Life Laser Diodes
Counting efficiencyConforms to ISO21501-4, JIS B9921
Maximum measurable concentration500,000CNT/ft3
parameter settingssampling time1~60S
output range(Each particle size is set separately)
Quantity: 0~10CNT, 0~100CNT, 0~1,000CNT, 0~10,000CNT
Concentration: 0~10CNT/cf, 0~100CNT/cf, 0~1,000CNT/cf, 0~ 1000,000CNT/cf
0~353CNT/m 3 , 0~3,530CNT/m 3 , 0~35,300CNT/m 3 , 0~35,300,000CNT/m 3
Call the police0%~100%
Alarm OutputON/OFF
address0~512
Communication InterfaceRS485, analog output 4~20mA
ProtocolRS485、Modbus(RTU)、Modbus(TCP、IP)
Working air sourceExternal air source
data cache2,000 groups
operating languageEnglish, Japanese
surroundingsoperate10~30℃ 20~85%RH (no condensation)
save-10~50℃ below 95%RH (no condensation)
power supplyDC 9~28V, POE power supply, AC 100~240V
Dimensions133x95x80mm
weight1.0kg
Standard accessoriesAC adapter, instruction manual, isokinetic suction port, zero count filter
